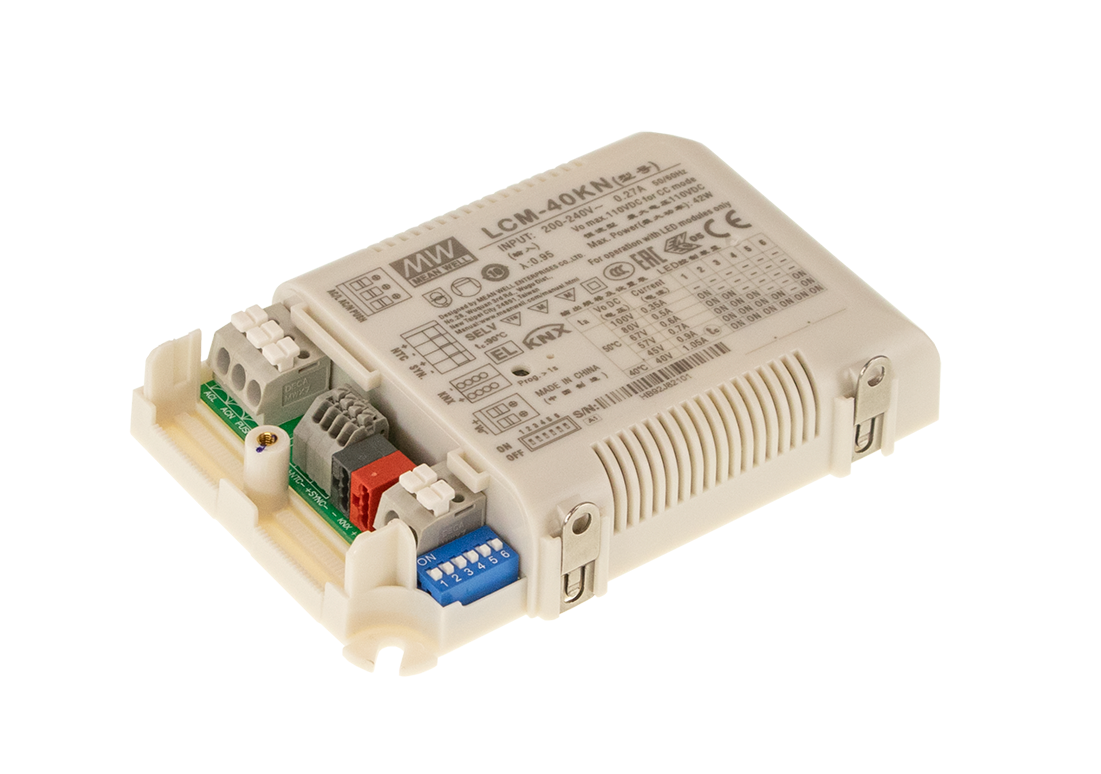

LCM-40KN - LCM-40KN 40W Multiple Stage Constant Current Mode LED Driver

LCM-40KN series is a 40W AC/DC constant current mode output LED driver, featuring multiple levels, selectable by dip switch, and the KNX interface.

Email

Description

The LCM-40KN Series is a 40W AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the KNX interface.

The LCM-40KN operates from 180 ~ 295 VAC and offers different current levels ranging between 350mA and 1050mA.

Due to the high efficiency of up to 90%, in addition to the fan-less design, the entire series is able to operate at -30°C~+90°C under free air convection.

In addition, the LCM-40KN is equipped with push dimming and synchronisation to provide the optimal design flexibility for a LED lighting system.

Additional information

Technology

KNX

Type

AC/DC,Constant Current,LED Driver

  • Constant current mode output with multiple levels selectable by dip switch
  • KNX protocol
  • Supports emergency lighting
  • Integrated constant light output
  • Integrated KNX push button interface
  • Synchronisation up to 10 units
  • Functions: manual dim, operation hours, power consumption feedback and log/linear curve selection etc
  • 3 years warranty
  • LED indoor lighting
  • LED office lighting
  • LED architectural lighting
  • LED panel lighting
