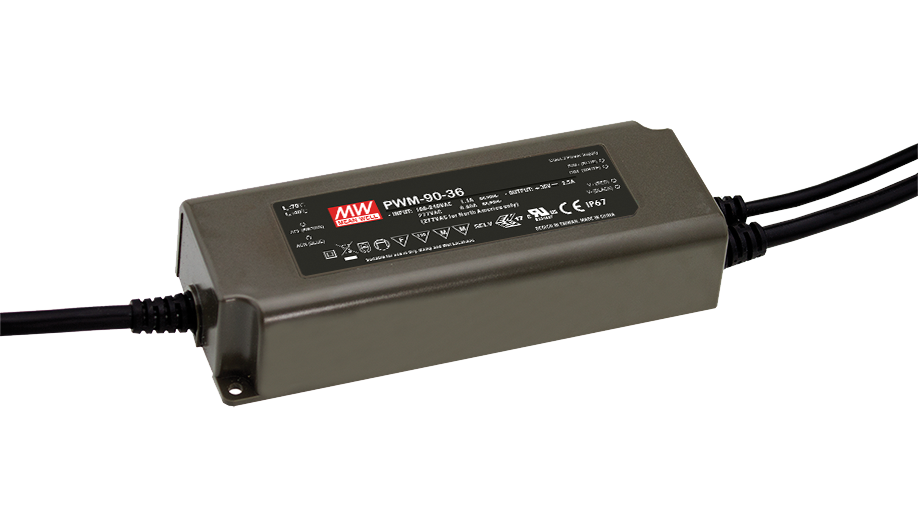

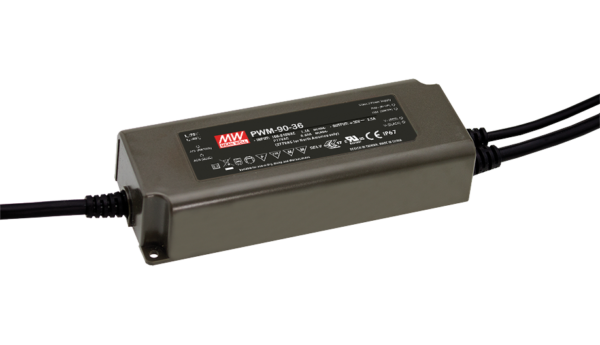

PWM-90 Series - 90W PWM Output LED Power Supply

Email

Description

PWM-90 Series are 90W constant voltage output LED lighting power supplies, available in 12V, 24V, 36V and 48V outputs. What separates this range from other DC output power supplies is that the output is transmitted in the form of PWM, adapting to directly drive LED lighting strips and ensuring that the colour temperature is maintained throughout the length of strip and that the brightness homogeneity can be assured. PWM-90 have a universal input range of 90VAC to 305VAC and incorporates PFC functionality; the series is also designed with a 2 in 1 dimming function of 1-10Vdc or PWM signal, simplifying brightness adjustment for system designers.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

Case Temperature 110, CB, CE, CURUS, Double Insulation, ENEC 17, Independent from Luminaire, IP67 Rated, PFC, SELV, Short Circuit Proof, Suitable for mounting on flammable surface, Suitable for mounting on wood, UL2

Type

AC/DC

Outputs

Constant Voltage

Technology

Switchmode

Inputs

90~305Vac

IP rating

IP67

Function

Dimmable

  • 90-305VAC Input
  • Constant voltage PWM form output
  • Built-in active PFC function
  • 0-10VDC or PWM input signal dimming functions
  • 0-100% dimming range
  • Short circuit, over load, over voltage and over temperature protections
  • Low no load power consumption
  • Class II power unit, no FG
  • Suitable for dry, damp or wet locations
  • 5 year warranty
  • LED architectural lighting
  • LED decorative lighting
  • Indoor LED lighting
  • LED strip lighting
  • Case Temperature 110
  • CB
  • CE
  • CURUS
  • Double Insulation
  • ENEC 17
  • Independent from Luminaire
  • IP67 Rated
  • PFC
  • SELV
  • Short Circuit Proof
  • Suitable for mounting on flammable surface
  • Suitable for mounting on wood
  • UL2
