LCM-60KN - LCM-60KN 60W Multiple Stage Constant Current Mode LED Driver

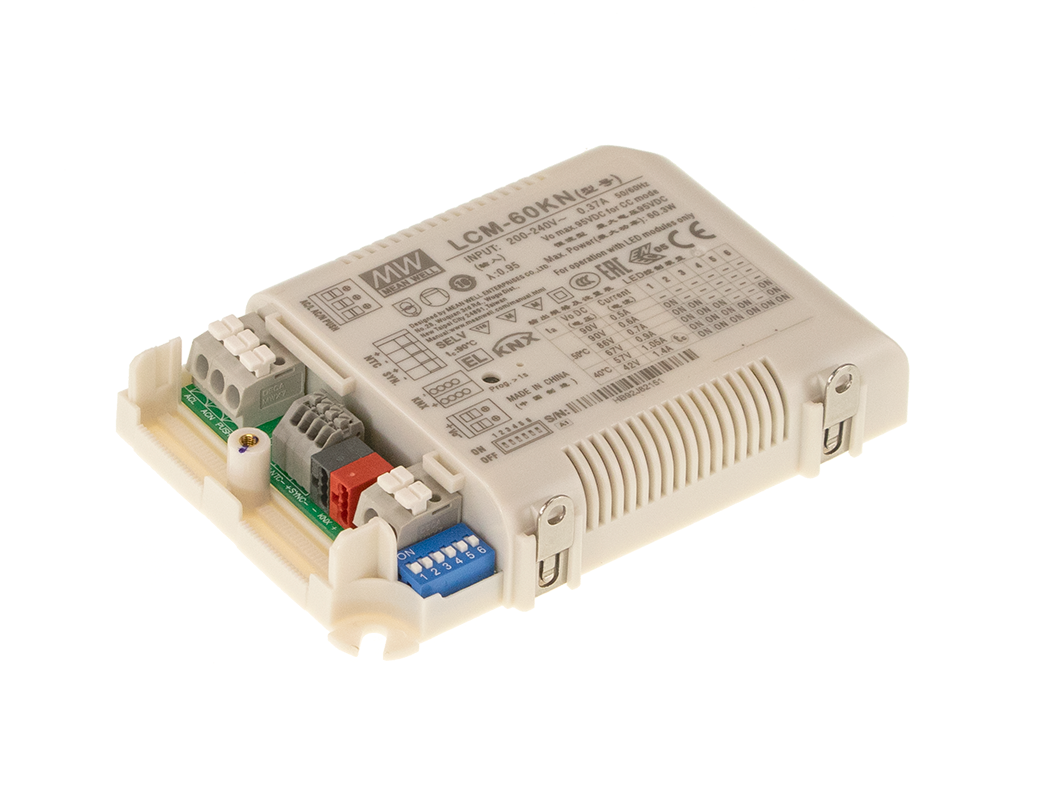

LCM-60KN series is a 60W AC/DC constant current mode output LED driver, featuring multiple levels, selectable by dip switch, and the KNX interface.

Email

Description

The LCM-60KN series is a 60W AC/DC constant current mode output LED driver, featuring the multiple levels selectable by dip switch and the KNX interface.

The device operates from 180 ~ 295 VAC and offers different current levels ranging between 500mA and 1400mA.

Due to the high efficiency of 90%, and the fan-less design, the entire series is able to operate for -30°C ~+ 90°C under free air convection.

In addition, the LCM-60KN is equipped with push dimming and synchronisation in order to provide optimal design flexibility for an LED lighting system.

Additional information

Weight 0.24 kg
Technology

KNX

Type

AC/DC,Constant Current,LED Driver

  • Constant current mode output with multiple levels selectable by dip switch
  • KNX protocol
  • Supports Emergency Lighting
  • Integrated constant light output
  • Integrated KNX push button interface
  • Synchronisation of up to 10 units
  • Functions: manual dim, operation hours, power consumption feedback and log/linear curve selection etc
  • 3 years warranty
  • Indoor LED lighting
  • LED office lighting
  • LED architectural lighting
  • LED panel lighting
