Description

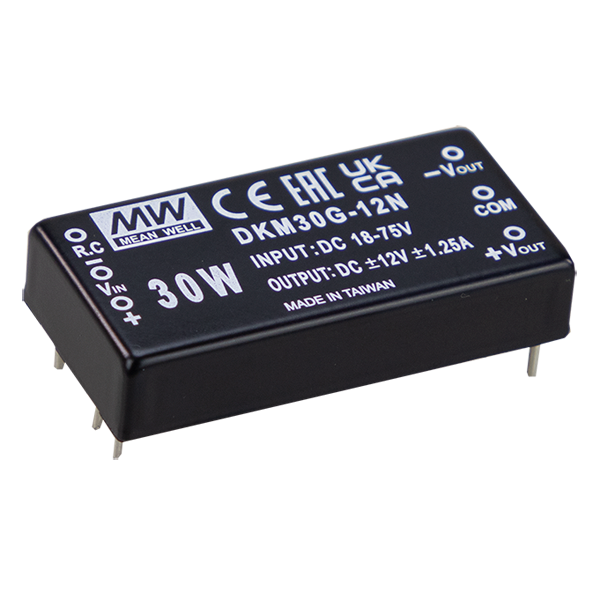

DKM30-N Series are 30W 2″x1″ package dual output DC-DC isolated and regulated converters, specified to a industry standard DIP pinout. Models are available in 9 ~ 36VDC and 18 ~ 75VDC 4:1 ultrawide input ranges and dual outputs of ±12V and ±15V. Other features include remote ON/OFF and trimmable output voltage, high efficiency up to 89%, wide working temperature range of -40 to +90C, 3KVDC input and output isolation voltage and continuous mode short circuit, over load and over voltage protections.
Additional information
| Weight | 0.04 kg |
|---|---|
| Function | Remote ON-OFF |
| Inputs | 18 ~ 75VDC,9 ~ 36VDC |
| Standards | CE,EAC,FCC,UKCA |
| Technology | Regulated |
| Type | DC/DC,Module Type |
| Range Power | |
| Outputs | Dual |
| warranty |
- 4:1 wide input range
- No minimum load requirement
- Complies to BS/EN55032 radiated Class A without need for additional components
- 3KVDC I/O isolation
- Short circuit, over load, over voltage protections
- Remote ON/OFF control and triming output
- Industrial control facilities
- Wireless networks
- Datacom systems
- Instrumentation
- Data switches
- Telecommunications
- CE,EAC,FCC,UKCA
