Description

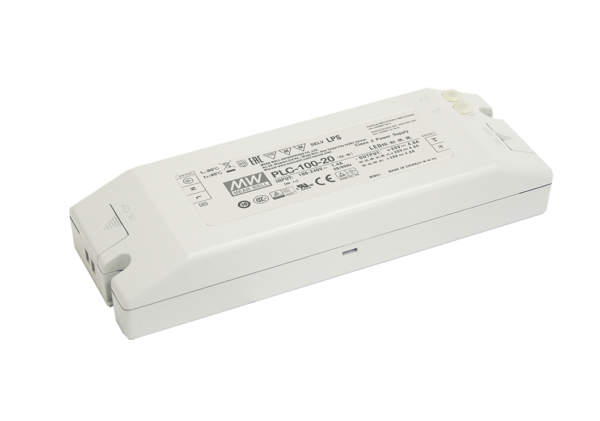

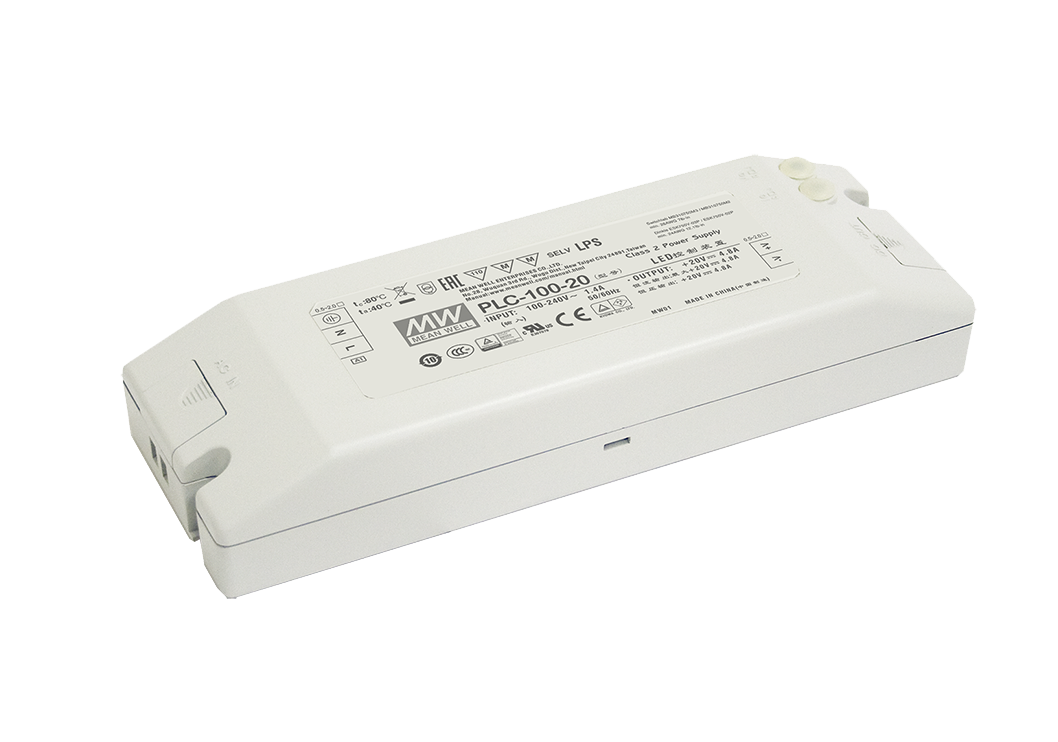

PLC-100 Series are 100W LED Lighting Power Supplies based on earlier PLN models but with a redesign to change the terminal block style of the Input/Output connections to be more flexible when wiring and the addition of two access points, with rubber stoppers, to allow the output voltage and current to be adjusted without the need to remove the covers.
Additional information
Standards | CE, CSUUS, PFC, TUV, UL2 |
---|---|
Outputs | |
IP rating | None |
- Universal AC input / Full range
- Short circuit, over load, over voltage, over temperature protections
- Built-in active PFC function
- UL1310 class 2 unit power
- Cooling by free air convection
- 100% full load burn-in test
- High reliability
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Moving signs
- Backlighting
- LED-based decorative/architectural lighting
- LED stage and theater lighting
- LED electronic displays
Input Voltage | 90 ~ 264VAC 127 ~ 370VDC |
Input Frequency | 47 ~ 63Hz |
Power Factor | PF>0.95/230VAC PF>0.95/115VAC at full load PF >0.9 at 75 ~ 100% load |
Input Current | 12V:0.8A/115VAC 0.4A/230VAC15V:0.9A/115VAC 0.45A/230VAC |
20V ~ 48V:1.1A/115VAC 0.55A/230VAC | |
Inrush Current | 40A/230VAC cold start |
Leakage Current | <0.75mA / 240VAC |
Line Regulation | ±1.0% |
Load Regulation | ±2.0% |
Set Up, Rise Time | 1200ms, 80ms/230VAC 1200ms, 80ms/115VAC at full load |
Hold Up Time | 60ms/230VAC 30ms/115VAC at full load |
Over Current Protection | 95 ~ 102% |
Constant current limiting, recovers automatically after fault condition is removed | |
Over Voltage Protection | Shut down and latch off o/p voltage, re-power on to recover |
Over Temperature Protection | 90°C ±10°C (RTH2) |
Shut down o/p voltage, re-power on to recover | |
Working Temperature | -30°C ~ +50°C (Refer to output load derating curve) |
Working Humidity | 20 ~ 95% RH non-condensing |
Storage Temperature, Humidity | -40°C ~ +80°C, 10 ~ 95% RH |
Temperature Coefficient | ±0.03%/°C (0 ~ 50°C) |
Vibration | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes |
Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
Safety Standards | UL1310 Class 2, EN61347-1, EN61347-2-13 independent,UL60950-1, TUV EN60950-1, |
UL879 ( listed in ULSign Components Manual (SAM) )CAN/CSAC22.2 No. 223-M91(except for 48V) approved | |
EMC | Compliance to EN55015, EN55022 (CISPR22) Class B; EN61000-3-2,-3, Class C (70% load); EN61000-3-3; |
EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, light industry level, (surge 4KV), criteria A | |
MTBF | 297.9Khrs min. MIL-HDBK-217F (25°C) |
Dimensions | 200.5 x 70.5 x 35mm |
- CE
- CSUUS
- PFC
- TUV
- UL2
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | R&N (mV) | Efficiency (%) | |
---|---|---|---|---|---|---|
PLC-100-12 | 60W | 12V | 5A | 150mV | 85% | Request quote |
PLC-100-15 | 7560W | 15V | 5A | 150mV | 86% | Request quote |
PLC-100-20 | 96W | 20V | 5A | 150mV | 89% | Request quote |
PLC-100-24 | 96W | 24V | 4A | 150mV | 89% | Request quote |
PLC-100-27 | 96W | 27V | 4A | 150mV | 88% | Request quote |
PLC-100-36 | 95W | 36V | 3A | 150mV | 88% | Request quote |
PLC-100-48 | 96W | 48V | 2A | 200mV | 89% | Request quote |
