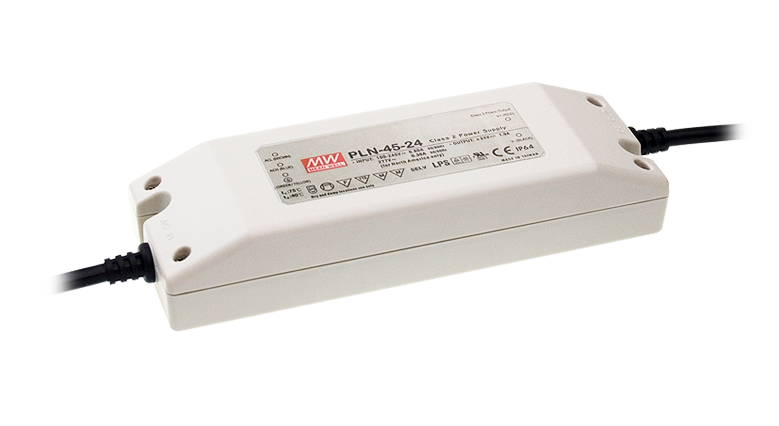

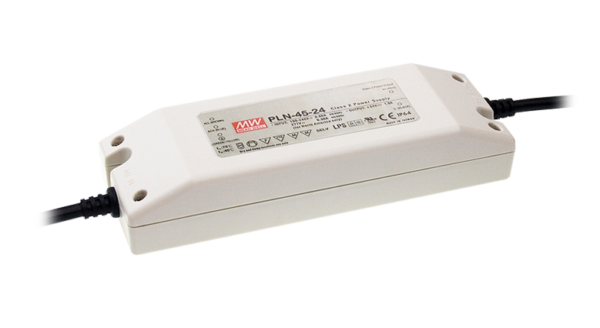

PLN-45 Series - 45W Single Output IP64 Class II LED Power Supply

Email
SKU: PLN-45 Series Category:

Description

A 45W AC/DC enclosed type switching power supply with universal AC input and active PFC function. These limited power sources comply with UL1310 Class II that under any situation the output power will be less than 100VA to 5A. The high IP64 level design can protect the electronic components from dust and moisture damage and making it useable for indoor and outdoor applications. Thanks to the simplified single stage PFC topology the required high power factor for the lighting industry can be achieved economically. Efficiencies are as high as 87.5% and hence can operate between -30°C and +50°C using only free air convection.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

Case Temperature 110, CE, CSUUS, IP64 Rated, LPS – Limited Power Source, PFC, SELV, Short Circuit Proof, Suitable for mounting on flammable surface, Suitable for mounting on wood, TUV, TUV PSE, UL2

Outputs

C.C. and C.V.

Inputs

90~295Vac

IP rating

IP64

  • Universal AC input
  • Fully isolated plastic case with IP64 level
  • Built-in constant current limiting circuit with adjustable OCP level
  • Short circuit, Over load, Over voltage, Over temperature protections
  • Built-in active PFC function
  • IP64 design for indoor or outdoor installations
  • UL1310,Class 2 power unit
  • Cooling by free air convection
  • 100% full load burn-in test
  • High realibility
  • Compliance to worldwide safety regulations for lighting
  • LED Lighting
  • Moving Signs and Back Lighting
  • Outdoor or Harsh Environment
  • Case Temperature 110
  • CE
  • CSUUS
  • IP64 Rated
  • LPS - Limited Power Source
  • PFC
  • SELV
  • Short Circuit Proof
  • Suitable for mounting on flammable surface
  • Suitable for mounting on wood
  • TUV
  • TUV PSE
  • UL2
