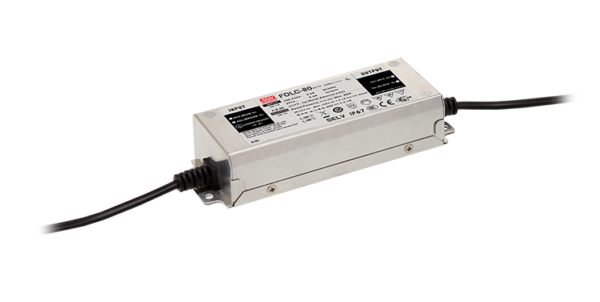

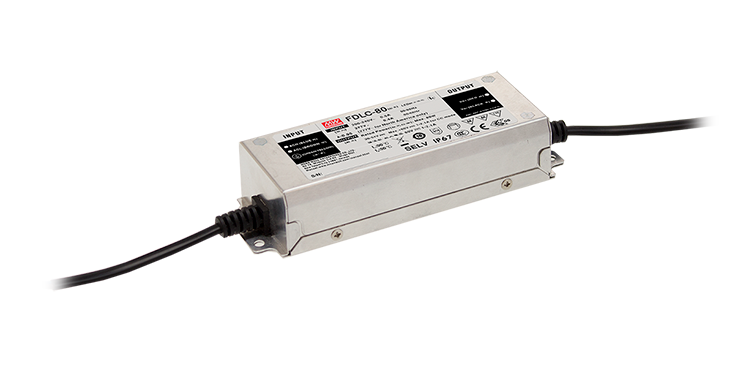

FDLC-80 - FDLC-80 80W Constant Power Mode LED Driver
FDLC-80 is an 80W Constant Power Mode LED Driver that operates from 180~295VAC and has an output current that can be adjusted between 1000mA to 2100mA.
Description
FDLC-80 is an 80W Constant Power Mode LED Driver. FDLC-80 operates from 180~295VAC and the output current can be adjusted between 1000mA to 2100mA. Thanks to the high efficiency up to 90% and a fan less design, FDLC-80 is able to operate between -30~+90 under free air convection. The metal housing design and IP67 ingress protection level allows this product to fit both indoor and outdoor applications. FDLC-80 is equipped with an output current adjustable function so as to provide the optimal design flexibility for LED lighting system. FDLC-80 complies with international LED safety regulations: EN55015; EN61347; EN61000 -3-2,3; GB17743.GB17625.1.
Additional information
| Weight | 0.43 kg |
|---|---|
| Current (amps) | 1000~2100mA |
| Inputs | 180 ~ 295VAC |
| Power (watts) | 80W |
| Type | AC/DC,Constant Power,LED Driver |
| Range Power |
