Description

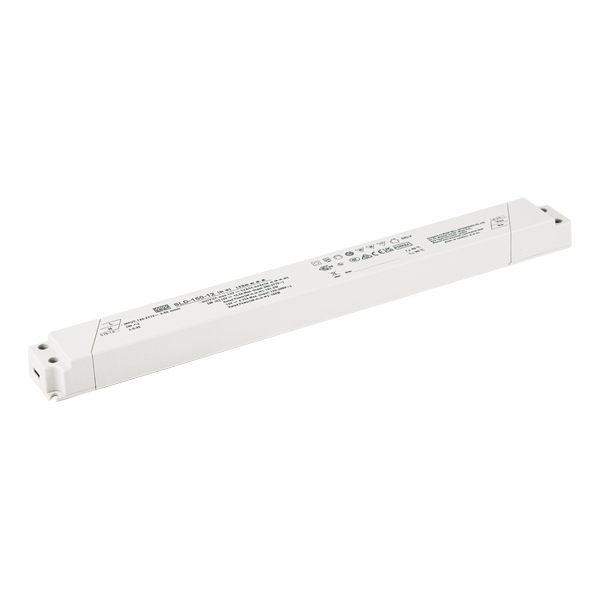

SLD-150 series is a 150W AC/DC LED driver featuring dual modes for constant voltage and constant current applications. This series operates from 120~305VAC and offers models with different voltage ranging from 12V & 56V. The 12V & 24V are suitable for a constant voltage LED strip or househld device and the 56V is suitable for a constant current application. With a high efficiency of 93% having a fanless design, the entire series is able to operate -25°C ~ +85°C case temperature under free air convection. The SLD-150 series design has a low profile and slim housing which is good for signage and decoration lighting applications.
Additional information
Weight | 0.31 kg |
---|---|
Inputs | 120 ~ 305VAC,170 ~ 431VDC |
Type | AC/DC,Constant Current Mode,Constant Power Mode,Constant Voltage Mode,LED Power |
Range Power | |
Outputs | Single |
warranty |
- Constant voltage & Constant current mode output (12/24V)
- Constant power mode output (56V)
- Wide input range 120-305VAC with PFC function
- Compliance with BS EN/EN61347/EN60335-1 regulations
- Class II power unit
- Strip lighting
- Decoration lighting
- Cabinet lighting
- Signage and display
- Cove lighting
- Household device lighting
