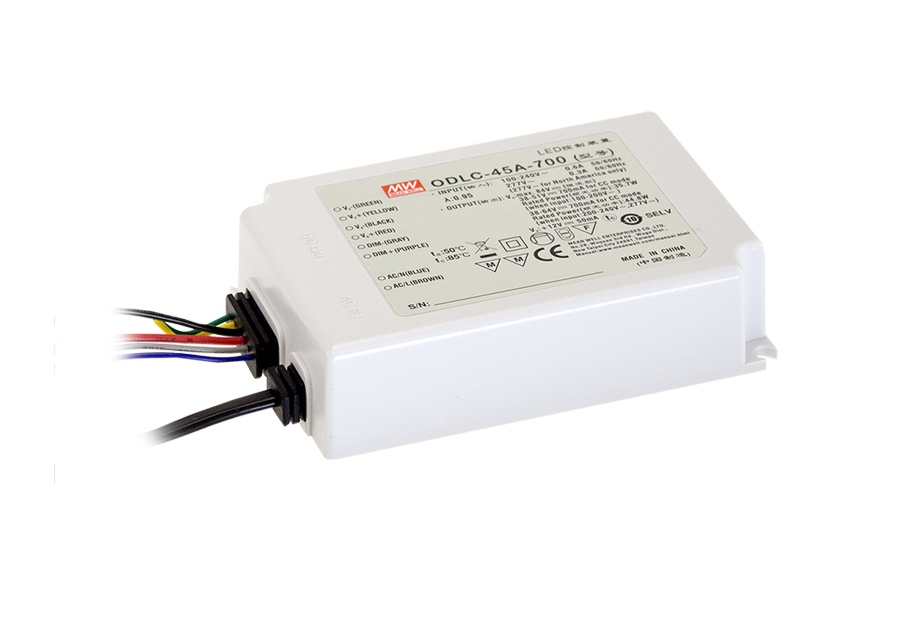

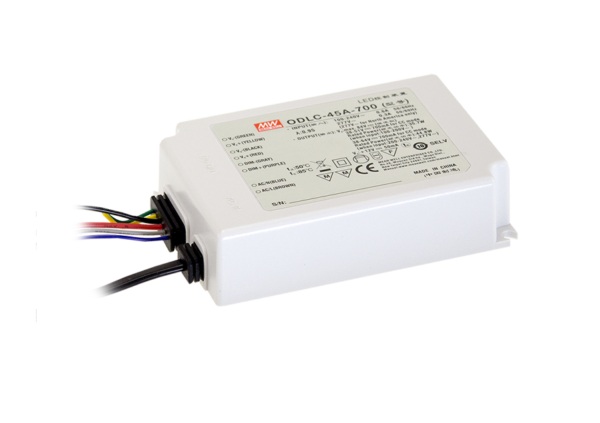

ODLC-45-1400 - ODLC-45-1400 44.8W 50V 1400mA Constant Current Mode LED Driver
ODLC-45-1400 is a 44.8W 50V 1400mA constant current mode LED driver with flicker free design.
Description
ODLC-45-1400 is a 44.8W 50V 1400mA constant current mode LED driver with flicker free design. ODLC-45-1400 operates from 90~295VAC and offers a current of 1400mA. Thanks to high efficiency up to 83% and a fan less design, ODLC-45-1400 is able to operate from -20~+85° case temperature under free air convection. The plastic housing design and IP67 ingress protection level allows it to fit indoors wet applications. ODLC-45-1400 is equipped with built-in active PFC function and dimming methodologies, so as to provide the optimal design flexibility for a lighting system. ODLC-45-1400 is suitable to be applied to indoor LED luminaires requiring flicker free and low power consumption, such as LED panel lighting and LED flood lighting and complies with UL8750, ENEC EN61347-1,-2-13 and GB19510.1, .14 international safety regulations for LED lighting.
Additional information
| Weight | 0.42 kg |
|---|---|
| Current (amps) | 1400mA |
| Efficiency (%) | 83% |
| Inputs | 90 ~ 295VAC |
| Power (watts) | 44.8W |
| Type | AC/DC,Constant Current,LED Driver |
| Range Power | |
| Outputs | Single |
