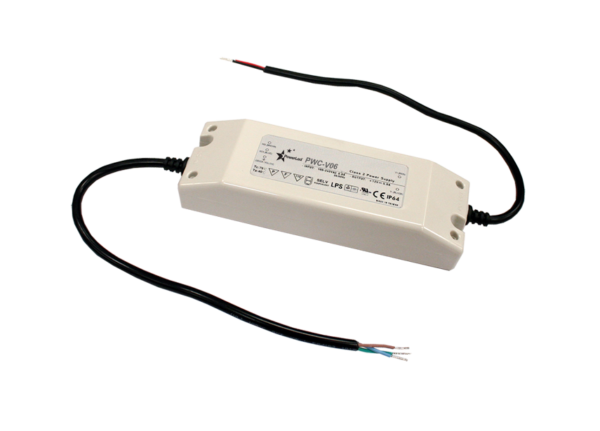

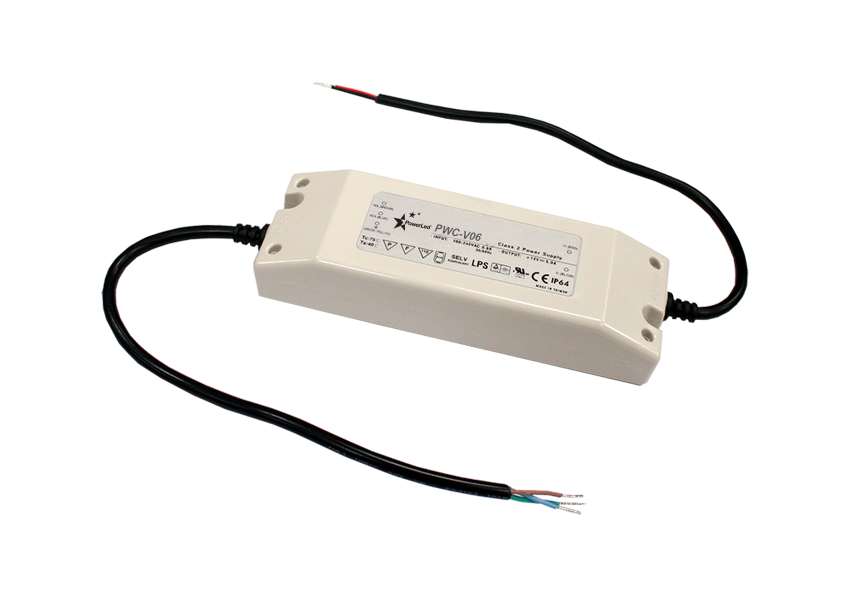

PLN-60 Series - 60W Single Output IP64 Class 2 LED Power Supply

Email
SKU: PLN-60 Series Category:

Description

A 60W led lighting power supply with universal AC input and active PFC function. These limited power sources comply with UL1310 Class II that under any situation the output power will be less than 100VA to 5A. The high IP64 level design can protect the electronic components from dust and moisture damage and making it useable for indoor and outdoor applications. Thanks to the simplified single stage PFC topology the required high power factor for the lighting industry can be achieved economically. Efficiencies are as high as 88% and hence can operate between -30°C and +70°C using only free air convection.

Additional information

Standards

CE, CSUUS, TUV, UL2

Outputs

C.C. and C.V.

IP rating

IP64

  • Universal AC input
  • Fully isolated plastic case with IP64 level
  • Built-in constant current limiting circuit with adjustable OCP level
  • Short circuit, Over load, Over voltage, Over temperature protections
  • Built-in active PFC function
  • IP64 design for indoor or outdoor installations
  • UL1310,Class 2 power unit
  • Cooling by free air convection
  • 100% full load burn-in test
  • High realibility
  • LED Lighting
  • Moving Signs and Back Lighting
  • Outdoor or Harsh Environment
Input Voltage90 ~ 264Vac 127 ~ 370Vdc
Input Frequency47 ~ 63Hz
Power FactorPF>0.9 at 75 ~ 100% load, 115Vac / 230Vac
Input Current0.8A/115Vac 0.4A/230Vac
Inrush Current40A/230Vac
Leakage Current0.75mA/240Vac
O/P Current Adjustment Range3% ~ -25%. Can be adjusted by internal potential meter SVR2
O/P Voltage Adjustment RangeCan be adjusted by internal potential meter SVR1
Voltage Tolerance±10%
Line Regulation±3.0%
Load Regulation±5.0%
Set Up Time1500ms/ 230Vac 3000ms/115Vac at full load
Over Current Protection110% (max); 95 ~ 110% on 12V model
Constant current limiting, recovers automatically after fault condition is removed
Short Circuit ProtectionHiccup mode, recovers automatically after fault condition is removed.
Over Voltage ProtectionShut down o/p voltage, re-power on to recover
Over Temperature Protection95°C ±10°C (TSW1) Detect on heatsink of power transistor
Shut down o/p voltage, recovers automatically after temperature goes down
Working Temperature-30°C ~ +50°C (Refer to output load derating curve)
Working Humidity20 ~ 90% RH non-condensing
Storage Temperature, Humidity-40°C ~ +80°C 10 ~ 95% RH
Temperature Coefficient±0.03%/°C (0 ~ 50°C)
Vibration10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Withstand VoltageI/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation ResistanceI/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
Safety StandardsUL1310 Class 2, TUV EN61347-1, EN61347-2-13, CAN/CSAC22.2 No. 223-M91(except for 48V), IP64 approved
EMCCompliance to EN55015, EN55022 (CISPR22) Class B; EN61000-3-2,-3
EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN61547, Light industry level, Criteria A
MTBF497.8Khrs min. MIL-HDBK-217F (25°C)
Dimensions181 x 61.5 x 35mm
