IDPV-25-48 - IDPV-25-48 24.96W 48V 0.52A PWM Output LED Driver

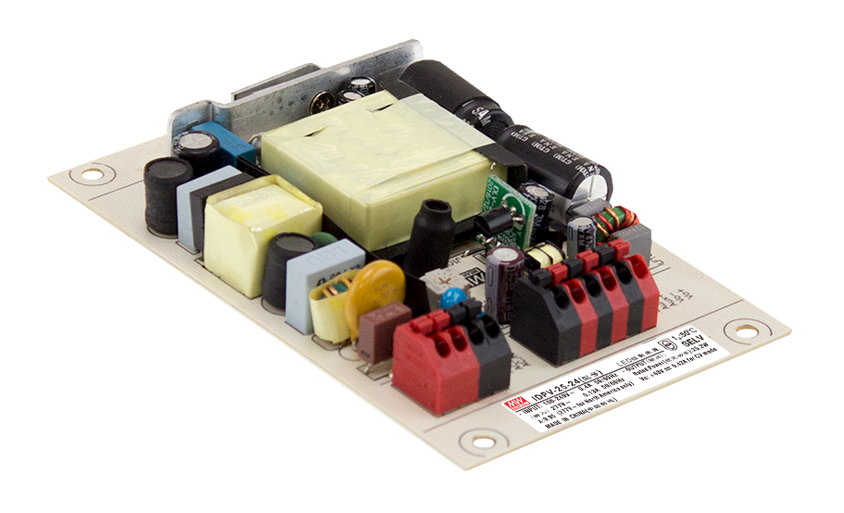

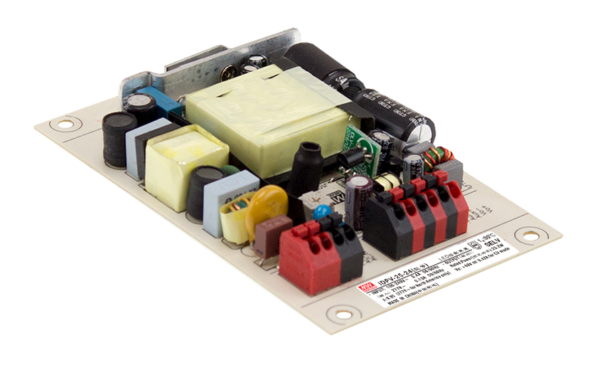

IDPV-25-48 is a 24.96W 48V 0.52A PCB type AC/DC LED driver featuring the constant voltage mode PWM style output design.
Description
IDPV-25-48 is a 24.96W 48V 0.52A PCB type AC/DC LED driver featuring the constant voltage mode PWM style output design and operates from 90~295VAC. Thanks to the high efficiency up to 83% and fan less design, IDPV-25-48 is able to operate between -20~+45C° ambient temperature under free air convection. IDPV-25-48 is equipped with various function options, such as dimming methodologies, so as to provide the design flexibility for a LED lighting system.
Additional information
| Weight | 0.15 kg |
|---|---|
| Efficiency (%) | 83% |
| Inputs | 90 ~ 295VAC |
| Power (watts) | 24.96W |
| Type | AC/DC,Constant Voltage,LED Driver |
| Range Power |
