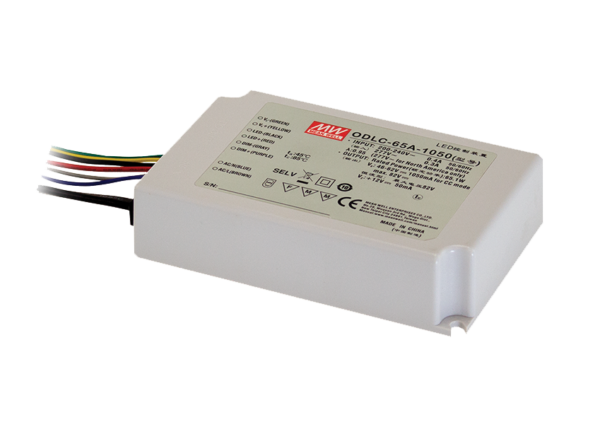

ODLC-65 Series - ODLC-65 Series 65W AC/DC Constant Current Mode LED Driver
ODLC-65 series is a 65W LED AC/DC driver featuring a constant current mode output with flicker free design.
Description
ODLC-65 series is a 65W LED AC/DC driver featuring a constant current mode output with flicker free design and is equipped with built-in active PFC function. ODLC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to high efficiency up to 88% and fan less design, the entire series is able to operate from -20 ~+85°C case temperature under free air convection. The plastic housing design and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for a lighting system. This series complies with UL8750, ENEC EN61347-1,-2-13 and GB19510.1, .14 international safety regulations for LED lighting and is suitable to be applied to indoor LED luminaires requiring flicker free and low power consumption, such as LED panel lighting and LED flood lighting.
Additional information
| Weight | 0.43 kg |
|---|---|
| Inputs | 180 ~ 295VAC |
| Type | AC/DC,Constant Current,LED Driver |
| Range Power | |
| Outputs | Single |
