HLG-100H-B Series - 100W Single Output IP67 Rated LED Power Supply with Dimming

Email
SKU: HLG-100H-B Series Category:

Description

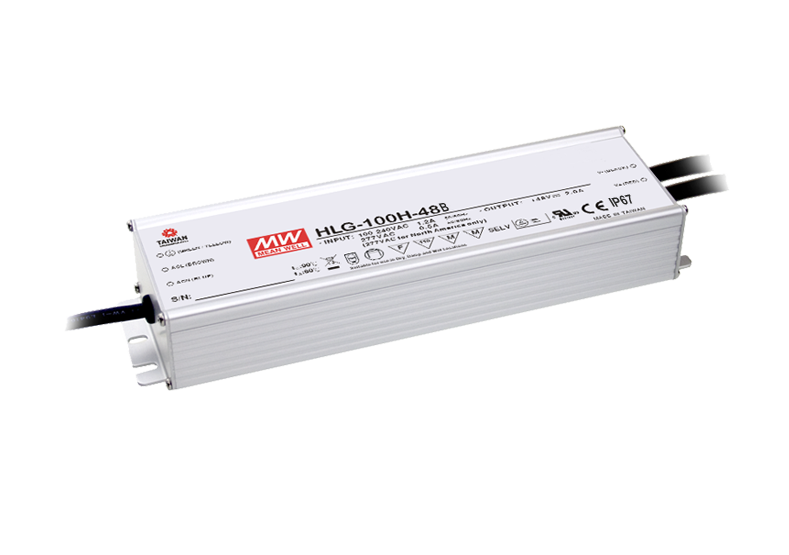

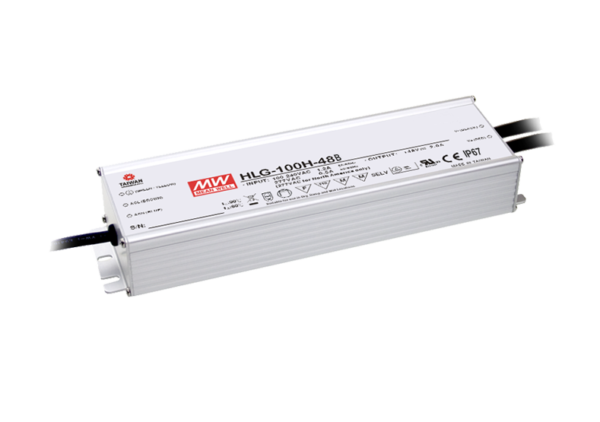

HLG-100H-B Series is a range of 100W Single Output IP67 Rated LED Lighting Power Supplies with wide ranging universal AC input of 90 ~ 305Vac and three in one dimming function. These LED power supplies have built in active PFC and are of 1P67 design for indoor and outdoor installations; the dimming function can be controlled via 1~10V, 10V PWM or resistance. Other features of HLG-100H-B include adjustable constant current level via the output cable and short circuit, over current, over voltage and over temperature protections.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

Case Temperature 110, CE, CSUUS, Independent from Luminaire, IP67 Rated, PFC, RoHS, SELV, Short Circuit Proof, Suitable for mounting on flammable surface, Suitable for mounting on wood, TUV, TUV PSE

Type

AC/DC

Outputs

C.C. and C.V.

Inputs

90~305Vac

IP rating

IP67

Function

Dimmable

  • Universal AC Input Range up to 305VAC
  • Built-in active PFC Function
  • High efficiency up to 93%
  • Short circuit, over current, over voltage and over temperature protections
  • Cooling by free air convection
  • Constant current level adjustable through output cable
  • 1~10V, 10V PWM or resistance dimming options
  • IP67 design for indoor or outdoor applications
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Sutiable for dry, damp or wet locations
  • LED street lighting
  • Architectural LED lighting
  • Case Temperature 110
  • CE
  • CSUUS
  • Independent from Luminaire
  • IP67 Rated
  • PFC
  • RoHS
  • SELV
  • Short Circuit Proof
  • Suitable for mounting on flammable surface
  • Suitable for mounting on wood
  • TUV
  • TUV PSE
