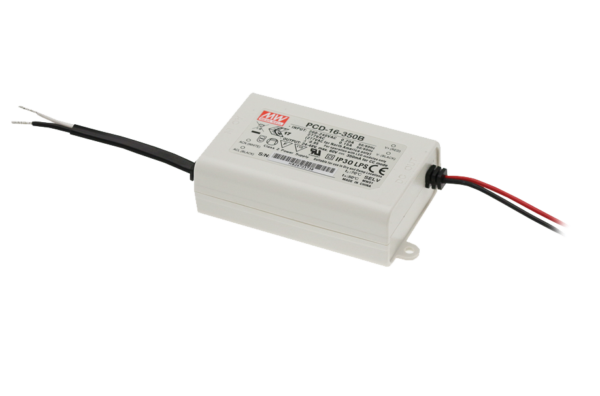

PCD-16B Series - 16W Single Output AC Dimmable LED Power Supply

Email
SKU: PCD-16B Series Category:

Description

PCD-16B Series are a range of constant current LED lighting power supplies with a 180 ~ 295Vac input and dimming function. These led power supplies have a fully isolated plastic case and active PFC function and are capable of operating temperatures of -30 to +60C; making them ideal for ceiling void installation. Other standard features include short circuit, over load and over temperature protections.

Additional information

Manufacturer

Mean Well Enterprises Ltd.

Standards

CE, PFC, TUV

Type

AC/DC

Outputs

Constant Current

IP rating

None

Function

Dimmable

  • Work with leading edge and trailing edge dimmers
  • 115VAC and 230VAC inputs available
  • Fully isolated plastic case
  • Built-in constant current limiting circuit
  • Protections: Short circuit / Overload / Over temperature
  • Built-in active PFC function
  • Cooling by free air convection
  • 100% full load burn-in test
  • High reliability
  • Indoor LED lighting
  • Embedded LED lighting
  • LED electronic displays
  • Wash wall lighting
  • LED stage and theatre lighting
  • LED decorative lighting
Input Current180 ~ 295VAC
Input Frequency47 ~ 63Hz
Input Current0.4A/115VAC 0.2A/230VAC
Inrush Current40A/230VAC
Leakage Current<0.5mA/ 240VAC
SetUp Time1000ms / 230VAC 2000ms / 115VAC at full load
Working Temperature-30 ~ +60°C
Working Humidity20 ~ 95% RH non-condensing
Storage Temperature, Humidity-40 ~ +80°C, 10 ~ 95% RH
Temperature Coefficient±0.03%/°C(0 ~ 50°C)
Vibration10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X,Y, Z axes
Withstand VoltageI/P-O/P:3.75KVAC
Isolation ResistanceI/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
Safety StandardsTUV EN61347-1, EN61347-2-13UL1310 Class 2
EMCCompliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547
EN61000-3-2 Class C; EN61000-3-3, EN55015 Class B
MTBF906.5Khrs min. MIL-HDBK-217F (25°C)
  • CE
  • PFC
  • TUV
