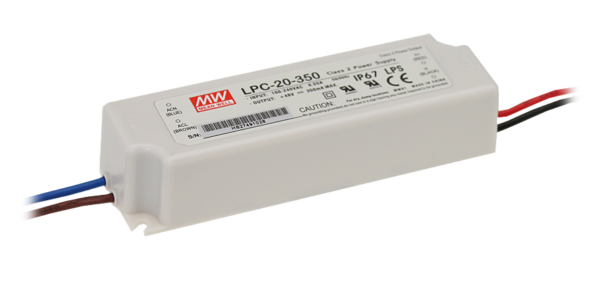

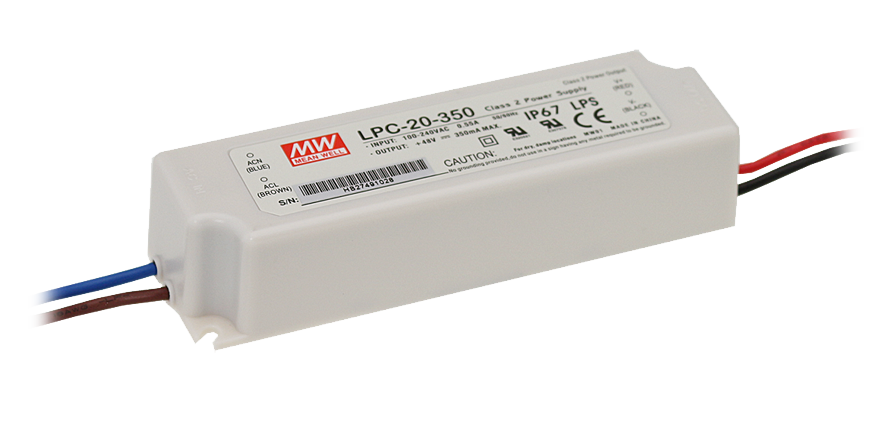

LPC-20 Series - 20W Single Output IP67 LED Power Supply

Email

Description

LPC-20 Series are 20W AC/DC enclosed, non PFC design, switching power supplies. LPC-20 models offer constant current mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPC-20 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPC-20 can withstand 300VAC input surge for 5 seconds.

Additional information

Standards

CE, CSUUS, Double Insulation, LPS – Limited Power Source, UL2

Type

AC/DC

Outputs

Constant Current

IP rating

IP67

  • Constant current mode power supply
  • Universal AC input
  • Withstand 300VAC surge input for 5 seconds
  • Epoxy encapsulated with IP67 level
  • Short circuit, over voltage protections
  • Fully isolated plastic case
  • Cooling by free air convection
  • Class II power unit, no FG
  • Passes LPS
  • Moving signs
  • Back lighting
  • LED-based decorative lighting
  • LED-based architectural lighting
  • LED stage and theatre lighting
  • LED electronic displays
  • CE
  • CSUUS
  • Double Insulation
  • LPS - Limited Power Source
  • UL2
