CLG-150 Series - CLG-150 Series 150W Single Output LED Power Supply Range

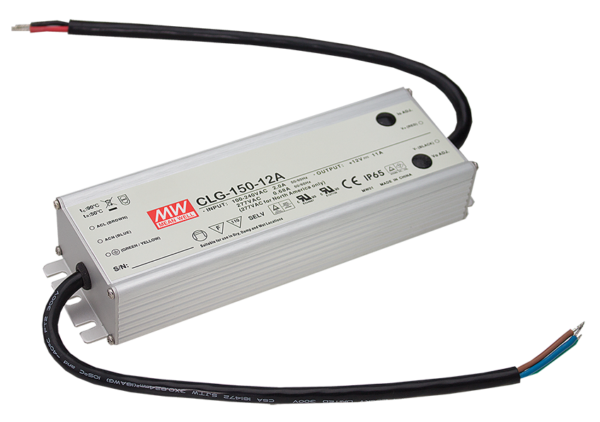

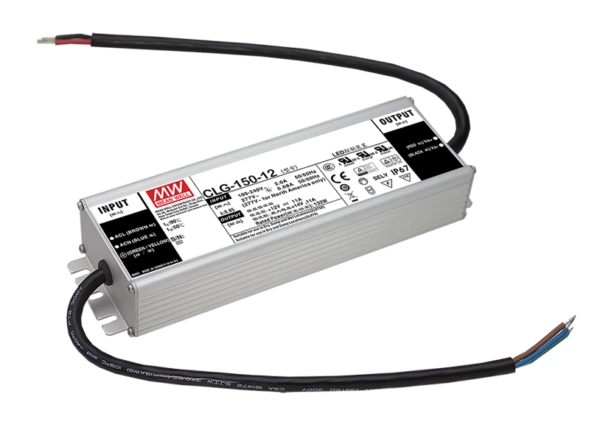

CLG-150 Series – 150W Single Output IP67 Rated Single Output LED Lighting Power Supply

Email

Description

CLG-150 Series is a range of 150W High IP rated AC/DC power supplies for the growing demands of larger LED lighting related applications. CLG-150 Series has system integrator adjustable output voltage and current levels and has IP67 protection levels against dust and moisture. With leading edge ZCS/ZVS technology CLG-150 has efficiency levels as high as 90% and can operate between -30°C ~ +70°C using only free air convection.

Additional information

Inputs

127 ~ 417VDC,90 ~ 295VAC

Standards

CSUUS,SELV Equiv,CE,Independent,IP65 Rated,TUV TYPE,CURUS

Range Power

Outputs

Single

warranty

  • Universal AC input / Full range (up to 280VAC)
  • Short circuit, over load, over voltage, over temperature protections
  • Built-in active PFC function
  • Cooling by free air convection
  • OCP point adjustable through internal potential meter
  • Suitable for LED lighting and moving sign applications
  • IP67 design for indoor or outdoor installations
  • <strong>3 input/output connection options available</strong>
  • LED streetlamps
  • Mid-scale moving signs
  • Backlighting
  • LED-based decorative lighting
  • LED-based architectural lighting
  • LED stage and theater lighting
  • LED electronic displays
  • CSUUS,SELV Equiv,CE,Independent,IP65 Rated,TUV TYPE,CURUS
