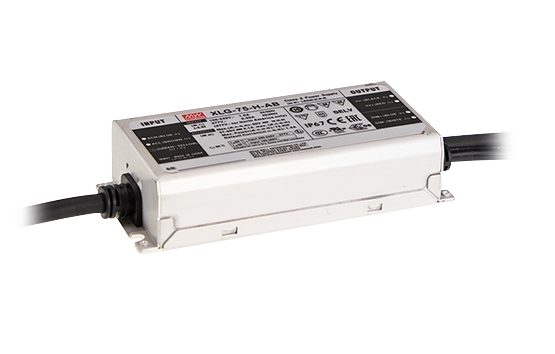

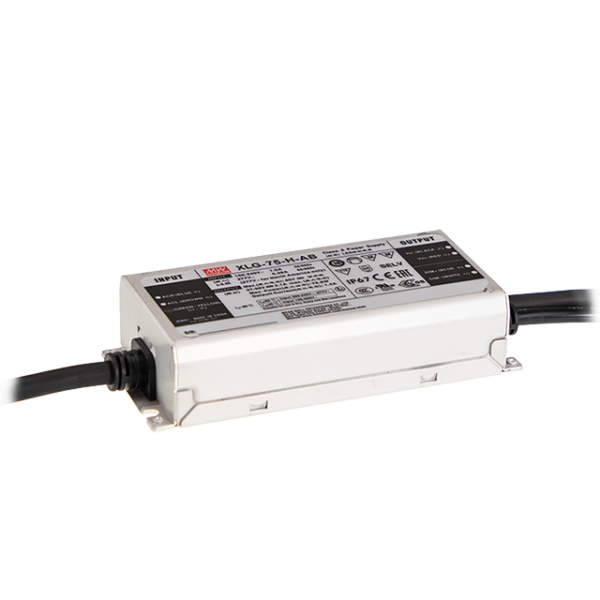

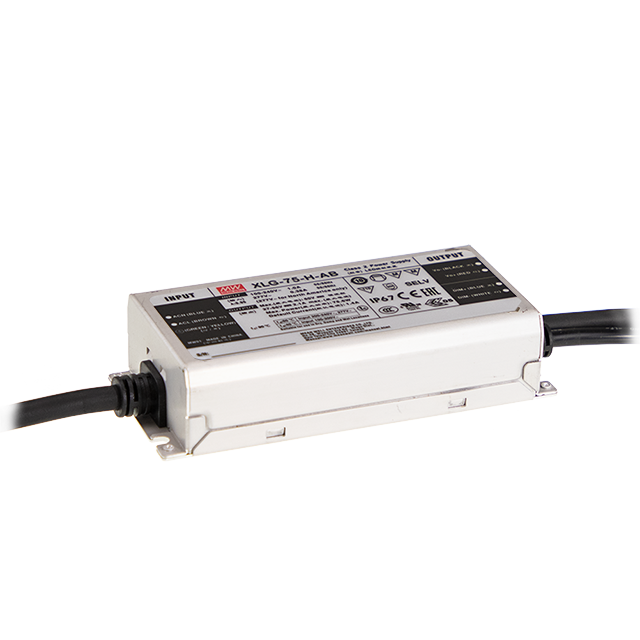

XLG-75 Series - XLG-75 Series 75W Constant Power Mode LED Drivers

XLG-75 Series 75W constant power mode led drivers are available in models offering rated currents between 700mA and 5000mA, adjustable outputs and 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistive).

Email

Description

XLG-75 Series 75W constant power mode led drivers operate from 100-305VAC and offer models with different rated current, ranging between 700mA and 5000mA. With high efficiency up to 91% and fanless design the series is able to operate at -40°C – +90°C case temperatures under free air convection. The metal housing design and IP67 ingress protection level allow this series to fit both indoor and outdoor applications.  XLG-75 Series 75W constant power mode led drivers comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also in accordance with regulation son isolation to ensure the safety of both users and luminaire system during installation.

Additional information

Type

AC/DC,Constant Power Mode,Constant Voltage,Harsh Environment

Range Power

Outputs

Single

  • Wide input range 100~305VAC (Class 1)
  • Full power output at 70-100% constant power mode operation
  • Metal case with IP67. suitable for outdoor applications
  • Class 2 power unit (except L type)
  • Surge protection with 6KV/4KV
  • 3 in 1 dimming function (Dim to off and isolation design)
  • Protection functions: OVP/SCP/OCP/OTP
  • 5 year warranty
  • Skyscraper lighting
  • Street lighting
  • Floodlight lighting
  • Stage lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power suppy
