IDPC-25-350 - IDPC-25-350 24.5W 100V 350mA PCB type Constant Current Mode LED Driver

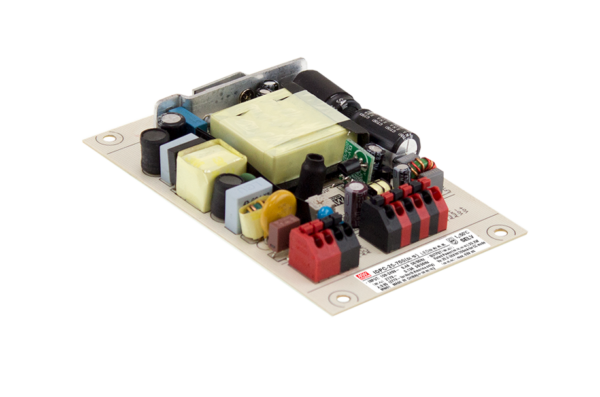

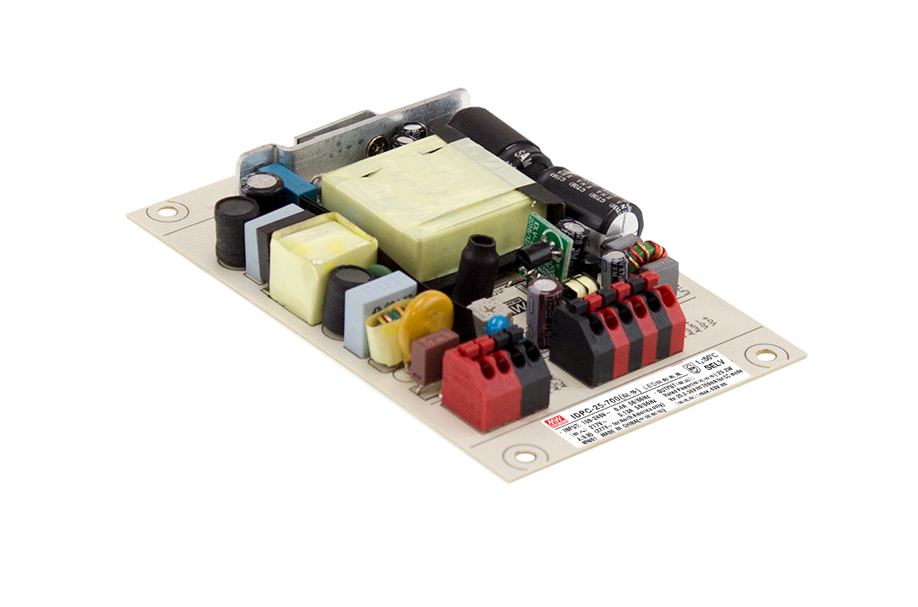

IDPC-25-350 series is a 24.5W 100V 350mA PCB type LED AC/DC driver featuring a constant current mode output with flicker free design.
Description
IDPC-25-350 series is a 24.5W 100V 350mA PCB type LED AC/DC driver featuring a constant current mode output with flicker free design and operates from 90~295VAC. Thanks to the efficiency up to 82% and a fan less design, IDPC-25-350 is able to operate from -20~+50°C ambient temperature under free air convection. IDPC-25-350 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for a lighting system. IDPC-25-350 is suitable for indoor LED lighting and applications requiring flicker free and low power consumption, such as LED panel lighting and LED flood lighting.
Additional information
| Weight | 0.12 kg |
|---|---|
| Current (amps) | 350mA |
| Efficiency (%) | 82% |
| Inputs | 90 ~ 295VAC |
| Power (watts) | 24.5W |
| Type | AC/DC,Constant Current,LED Driver,Open Frame |
| Range Power | |
| Outputs | Single |
