Description

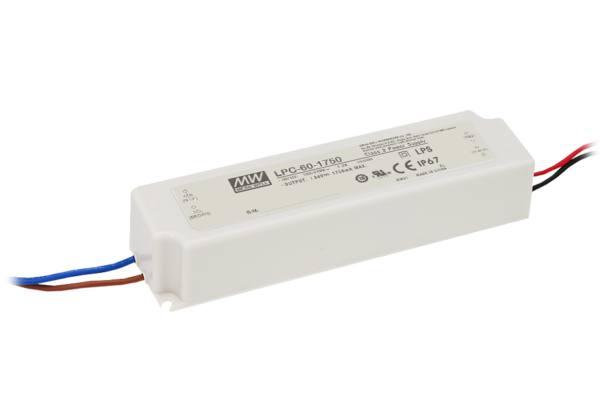

LPC-60 Series are 60W AC/DC enclosed, non PFC design, switching power supplies. LPC-60 models offer constant current mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPC-60 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPC-60 can withstand 300VAC input surge for 5 seconds.
Additional information
Standards | CE, CSUUS, UL2 |
---|---|
Outputs | |
IP rating | IP67 |
- Constant current mode power supply
- Universal AC input
- Epoxy encapsulated with IP67 level
- Withstand 300VAC surge input for 5 seconds
- Short circuit, over current, over voltage protections
- Fully isolated plastic case
- Cooling by free air convection
- UL1310 Class 2 power unit, passes LPS
- 100% full load burn-in test
- Low cost, high reliability
- moving signs
- Backlighting
- LED-based decorative lighting
- LED-based architectural lighting
- LED stage and theater lighting
- LED electronic displays
- CE
- CSUUS
- UL2
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | R&N (mV) | Efficiency (%) | |
---|---|---|---|---|---|---|
LPC-60-1050 | 50W | 48V | 1A | 200mV | 87% | Request Quote |
LPC-60-1400 | 59W | 42V | 1A | 200mV | 85% | Request Quote |
LPC-60-1750 | 60W | 34V | 2A | 200mV | 87% | Request Quote |
