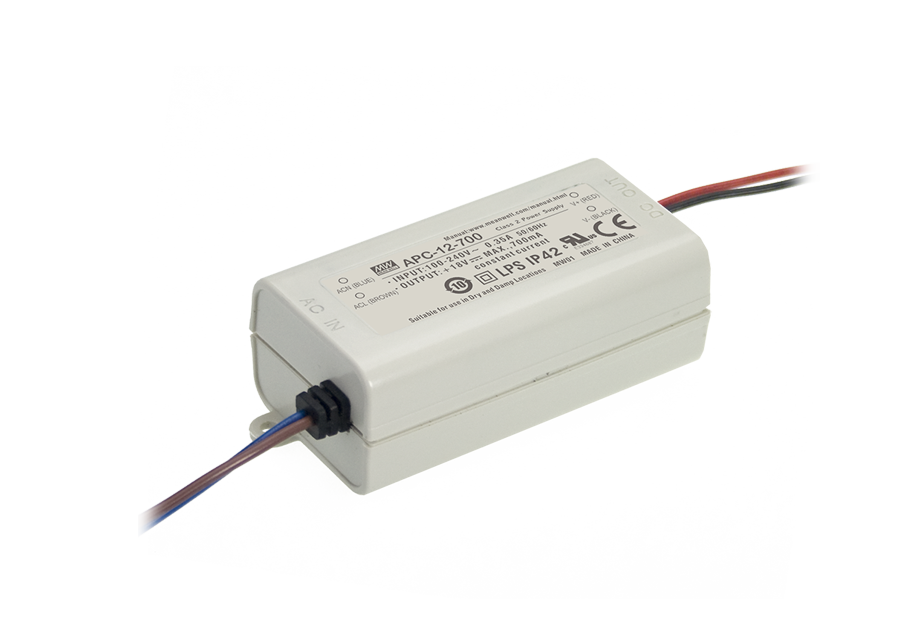

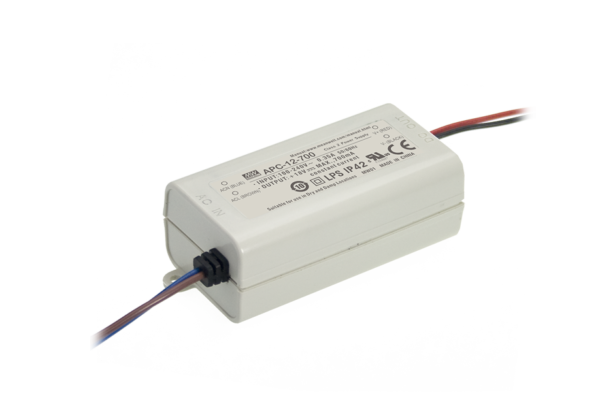

APC-12 Series - 12W Single Output LED Power Supplies

Email
SKU: APC-12 Series Category:

Description

Available End Sept/Beginning Oct A small and compact 12W economical constant current LED power supply. Enclosed in a fully isolated rectangular plastic case, the APC-12 is ideal for LED lighting due to its high level waterproof and dustproof ratings. Protections include Short Circuit, Overload and Over voltage.

Additional information

Standards

CE

Outputs

Single

  • Constant current mode power supply
  • Universal AC input/Full range
  • Short circuit, over voltage protections
  • Fully isolated plastic case
  • Small and compact size
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Suitable for LED lighting and moving sign applications
  • Low cost/High reliability
  • LED lighting
  • Moving signs
  • Decorative Lighting
Input Voltage Range 90~264VAC 127~370VDC
Frequency Range 47~63Hz
Input Current 0.2A/230VAC 0.35A/115VAC
Inrush Current Cold Start 35A/115VAC 70A/230VAC
Leakage Current 0.25mA/240VAC
Setup, Rise Time 3000ms, 180ms/230VAC 3000ms,150ms/115VAC at full load
Hold up Time 20ms/230VAC, 15ms/115VAC at full load
Voltage Tolerance ±5.0%
Line Regulation ±1.0%
Load Regulation ±3.0%
Working Temperature -30~+70°C, refer to derating curve
Working Humidity 20~90% RH non-condensing
Storage Temp., Humidity -40~+80°C, 10~95% RH
Vibration 10~500Hz, 2G 10 min./1 cycle, period for 60min. each along X, Y, Z axes
Safety Standards Design refers to TUV, EN60950-1, EN61347-2-13; UL8750
EMC EN55015; EN61000-3-2; EN61000-3-3
EMI EN61547; EN61000-4-2,3,4,5,6,8,11
MTBF 1145.7K hrs min. MIL-HDBK-217F (25°C)
  • CE
