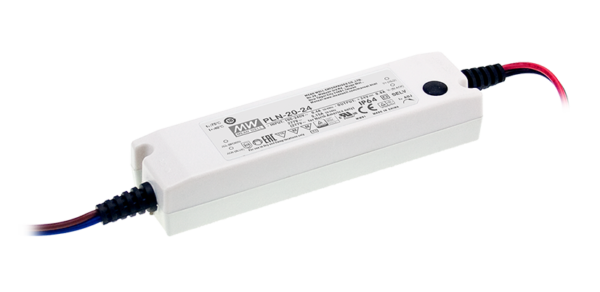

PLN-20-36 - PLN-20-36 19.8W 36V 0.55A IP64 Rated PFC LED Lighting Power Supply
19.8W 36V 0.55A IP64 Rated PFC LED Lighting Power Supply
Description
PLN-20 Series are a range of single output led lighting power supplies with single stage power factor correction and wide range 90~277VAC input voltage. The IP64 level rating means this power supply offers levels of waterproof/dustproof protection. Through the built-in potential-meter, the output current level can be fine tuned between 75~100% of rated value increasing the flexibility of system design. Other standard features include short circuit, over load, over voltage and over temperature protections.
Additional information
Weight | 0.18 kg |
---|---|
Current (amps) | 1A |
Efficiency (%) | 83% |
Power (watts) | 20W |
R&N (mV) | 3 |
Type | AC/DC,Constant Voltage,LED Driver |
Voltage (max/rated) | 36VDC |
Range Power | |
Outputs | Single |
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | R&N (mV) | Efficiency (%) | |
---|---|---|---|---|---|---|
PLN-20-12 | 19W | 12VDC | 2A | 3 | 80% | Request Quote |
PLN-20-18 | 20W | 18VDC | 1A | 3 | 81% | Request Quote |
PLN-20-24 | 19W | 24VDC | 1A | 3 | 82% | Request Quote |
PLN-20-36 | 20W | 36VDC | 1A | 3 | 83% | Request Quote |
PLN-20-48 | 20W | 0A | 4 | 84% | Request Quote |
