MEAN WELL Products

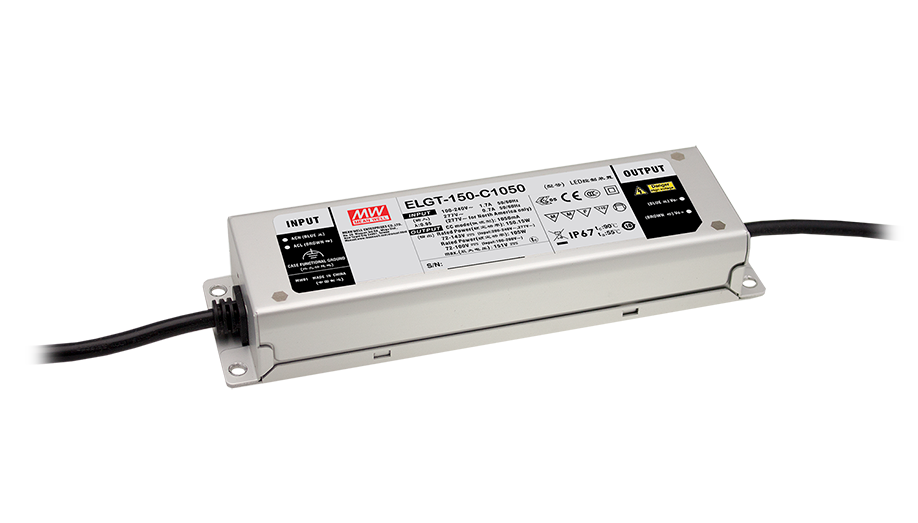

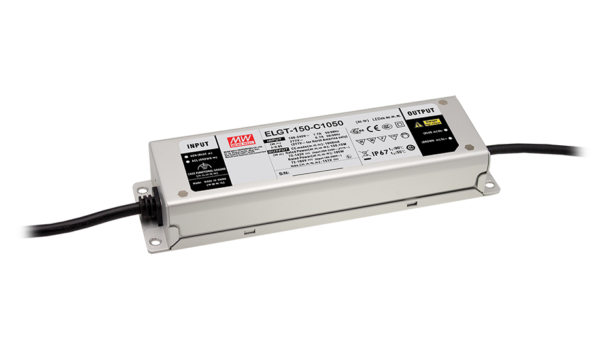

ELGT-150-C series - ELGT-150-C series 105~150W AC/DC Class Constant Current Mode LED Driver
ELGT-150-C series is a 105~150W LED AC/DC Class II driver featuring constant current mode and high voltage output.
Description
ELGT-150-C series is a 105~150W LED AC/DC Class II driver featuring constant current mode and high voltage output, which is suitable for the application of two wires input (no FG ground wire) or on-site application without grounding device. ELGT-150-C operates from 100~305vac and offers models with different rated current ranging between 700mA and 1400mA. Thanks to high efficiency up to 92% and fan less design, the entire series is able to operate from -40~+90°C case temperature under free air convection. The metal housing design and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELGT-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for a LED lighting system. ELGT-150-C can be widely applied in applications such as LED street, harbour, bay and flood lighting.
Additional information
| Weight | 0.95 kg |
|---|---|
| Inputs | 100 ~ 305VAC |
| Type | AC/DC,Constant Current,LED Driver |
| Range Power | |
| Outputs | Single |
