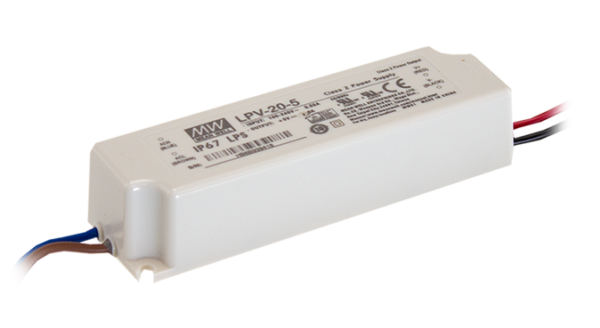

LPV-20 Series - 20W Single Output IP67 LED Power Supply

Email
SKU: LPV-20 Series Category:

Description

LPV-20 Series are 20W AC/DC enclosed, non PFC design, switching power supplies. LPV-20 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPV-20 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPV-20 can withstand 300VAC input surge for 5 seconds. UL879, UL1310 Class 2, CAN/CSAC22.2 No. 223-M91, IP67 approved

Additional information

Standards

CE, CSUUS

Outputs

Constant Voltage

IP rating

IP67

  • Constant voltage mode power supply
  • Universal AC input / Full range
  • Epoxy encapsulated with IP67 level
  • Withstand 300VAC surge input for 5 seconds
  • Short circuit, over current, over voltage protections
  • Fully isolated plastic case
  • Cooling by free air convection
  • Small and compact size
  • UL1310 Class 2 power unit, passes LPS
  • 100% full load burn-in test
  • Low cost, high reliability
  • moving signs
  • Backlighting
  • LED-based decorative lighting
  • LED-based architectural lighting
  • LED stage and theater lighting
  • LED electronic displays
Input Voltage 90 ~ 264Vac
Input Frequency 47 ~ 63Hz
Input Current 0.55A/115Vac 0.35A/230Vac
Inrush Current 35A/115Vac 70A/230Vac, cold start
Leakage Current 0.25mA/ 240Vac
Voltage Tolerance ±5.0%
Line Regulation ±1.0%
Load Regulation ±2.0%
Set Up, Rise Time 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load
Hold Up Time 50ms/230Vac 16ms/115Vac at full load
Over Current Protection 110 ~ 150% rated output power
Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection Shut off o/p voltage, clamping by zener diode
Working Temperature -30°C ~ +70°C (Refer to output load derating curve)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C ~ +80°C, 10 ~ 95% RH
Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Withstand Voltage I/P-O/P:3KVAC
Isolation Resistance I/P-O/P:>100M Ohms/500VDC 25°C 70% RH
Safety Standards UL879, UL1310 Class 2, CAN/CSA C22.2 No. 223-M91, IP67 approved
Design refers toTUV EN60950-1, EN61347-2-13
EMC Compliance to EN55022 (CISPR22) Class B; EN61000-3-2 Class A; EN61000-3-3; ENV50204;
EN61000-4-2,3,4,5,6,8,11; EN55024, light industry level, criteria A
MTBF 786.5Khrs min. MIL-HDBK-217F (25°C)
Dimensions 118 x 35 x 26mm
