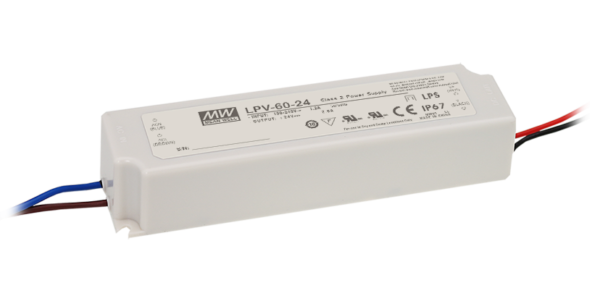

LPV-60 Series - 60W Single Output IP67 LED Power Supply

Email
SKU: LPV-60 Series Category:

Description

LPV-60 Series are 60W AC/DC enclosed, non PFC design, switching power supplies. LPV-60 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPV-60 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPV-60 can withstand 300VAC input surge for 5 seconds.

Additional information

Standards

CE, CSUUS, UL2

Outputs

Constant Voltage

IP rating

IP67

  • Constant voltage mode power supply
  • Universal AC input
  • Withstand 300VAC surge input for 5 seconds
  • Short circuit, over load, over voltage protections
  • Fully isolated plastic case
  • Cooling by free air convection
  • UL1310 Class 2 power unit, passes LPS
  • 100% full load burn-in test
  • Low cost, high reliability
  • moving signs
  • Backlighting
  • LED-based decorative lighting
  • LED-based architectural lighting
  • LED stage and theater lighting
  • LED electronic displays
Input Voltage 90 ~ 264Vac
Input Frequency 47 ~ 63Hz
Input Current 1.2A/115Vac 1A/230Vac
Inrush Current 30A/115Vac 60A/230Vac, cold start
Leakage Current 0.25mA / 240Vac
Line Regulation ±1.0%
Set Up, Rise Time 500ms, 20ms / 230Vac 500ms, 20ms / 115Vac at full load (for 5~36V)
500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
Hold Up Time 50ms/230Vac 16ms/115Vac at full load
Over Current Protection 110 ~ 150% rated output power
Hiccup mode, recovers automatically after fault condition is removed
Over Voltage Protection Shut down o/p voltage, re-power on to recover
Working Temperature -30°C ~ +70°C (Refer to output load derating curve)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temperature, Humidity -40°C ~ +80°C, 10 ~ 95% RH
Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Withstand Voltage I/P-O/P:3KVAC
Isolation Resistance I/P-O/P:>100M Ohms/500VDC 25°C 70%RH
Safety Standards UL1310 Class 2, CAN/CSA C22.2 No. 223-M91(except for 5V,48V), IP67 approved,
Design refers to TUV EN60950-1, EN61347-2-13
EMC Compliance to EN55022 (CISPR22) Class B; EN61000-3-2,-3;
EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, light industry level, criteria A
MTBF 732Khrs min. MIL-HDBK-217F (25°C)
Dimensions 162.5 x 42.5 x 32mm
  • CE
  • CSUUS
  • UL2
