HomeMEAN WELL ProductsLED Power SupplyLPF-25-48 25W 48V 0.53A Single Output Switching LED Power Supply

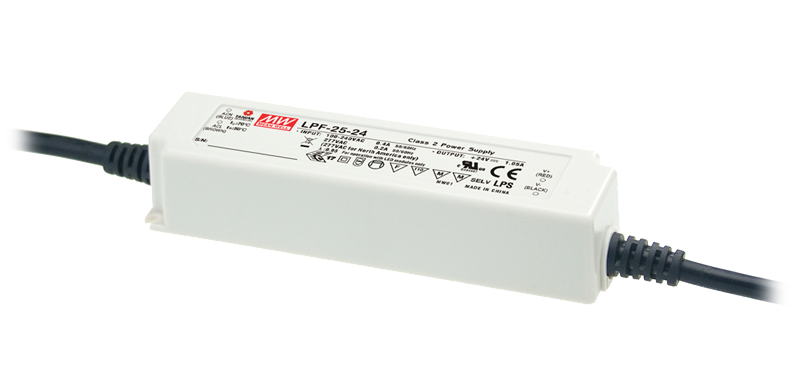

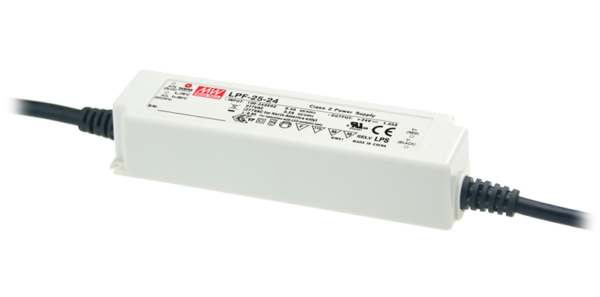

LPF-25-48 - LPF-25-48 25W 48V 0.53A Single Output Switching LED Power Supply

25W 48V 0.53A Single Output Switching LED Power Supply

Email
SKU: LPF-25-48 Category: Category:

Description

The LPF-25 series is a 25W unit designed to fulfill the lower wattage applications of LED lighting and decorative lighting. Enclosed in a plastic case the unit is IP67 rated and can operate between -35~+70°C ambient temperature. Posessing up to 87% of high efficiency and protections including short circuit, over voltage, overload and over temperature.

Additional information

Weight 0.36 kg
Efficiency (%)

87%

Power (watts)

25W

R&N (mV)

250mV

Type

AC/DC,Constant Current,Constant Voltage,LED Driver

Voltage (max/rated)

48VDC

Range Power

Outputs

Single
