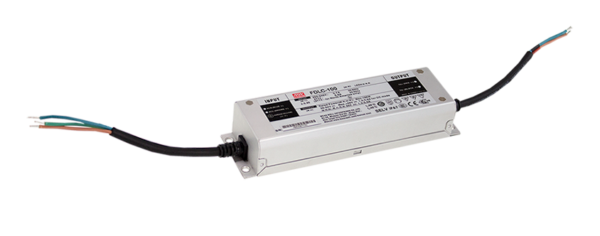

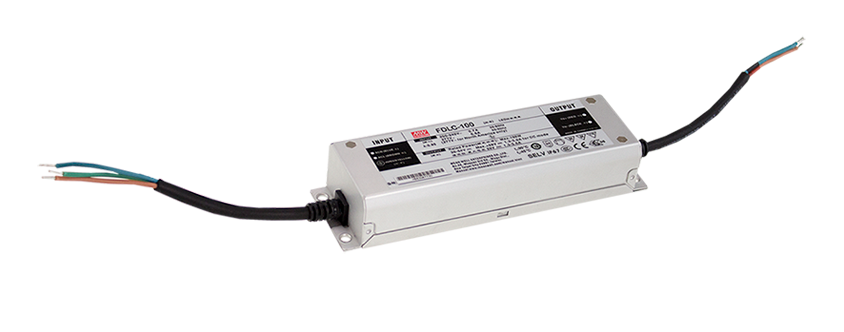

FDLC-100 Series - 100W Constant Power Mode LED Power Supply

FDLC-100 is a 100W Constant Power Mode LED Power Supply Series.

Email

Description

FDLC-100 series is a 100W LED AC/DC LED power supply featuring the constant power mode output. FDLC-100 operates from 180-295VAC and output current can be adjust between 1300mA to 3000mA. Thanks to the high efficiency up to 90%, with the fan-less design, the entire series is able to operate from -30°C~ +90°C case temperature under free air convection. The metal housing design and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. FDLC-100 is equipped with an output current adjustable function so as to provide the optimal design flexibility for a LED lighting system.

Additional information

Power (watts)

100W

Type

AC/DC,Constant Power,LED Driver

Range Power

  • Constant Power mode output
  • Metal housing design
  • Full Power at 70-100% max. current
  • Built-in active PFC function
  • No load power consumption <0.5W
  • IP67 rating for indoor or outdoor installations
  • Output current adjustable via potentiometer
  • 3 years warranty

  • LED flood lighting
  • LED decorative lighting
  • LED architectural lighting
