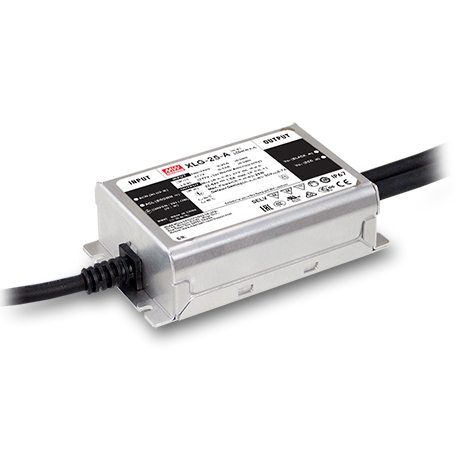

XLG-25-A - XLG-25-A 25W Constant Power IP67 Adjustable Io LED Lighting Power Supply
XLG-25 Series is a range of 25W constant power IP67 LED lighting power supplies that operate from 100~305Vac, with adjustable output via a potentiometer from 22V through to 54V to ensure output currents of 0.25A to 1.05A.
Description
XLG-25-A is a 25W constant power IP67 LED lighting power supply with Io adjustable through internal potentiometer that operates from 100~305Vac. ; the output is adjustable via a potentiometer from 22V through to 54V to ensure output currents of 0.25A to 1.05A and functionality can be increased further with 3 in 1 dimming on AB model. Due to high efficiencies, up to 88%, the series is able to operate at temperatures between -40ºC and +85ºC using only free air convection. These 25W constant power IP67 LED lighting power supplies have a metal housing and IP67 ingress protection level for installation both indoors and out and have been designed for optimal flexibility when used within LED lighting systems.
Additional information
| Weight | 0.40 kg |
|---|---|
| Current (amps) | 700mA |
| Efficiency (%) | 88% |
| Function | 3 in 1 Dimming |
| Inputs | 90 ~ 305VAC |
| IP rating | IP67 |
| Power (watts) | 25W |
| R&N (mV) | 5% (@Rated Current) |
| Standards | CURUS |
| Type | AC/DC,Constant Power,LED Driver |
| Range Power | |
| Outputs | Single |
