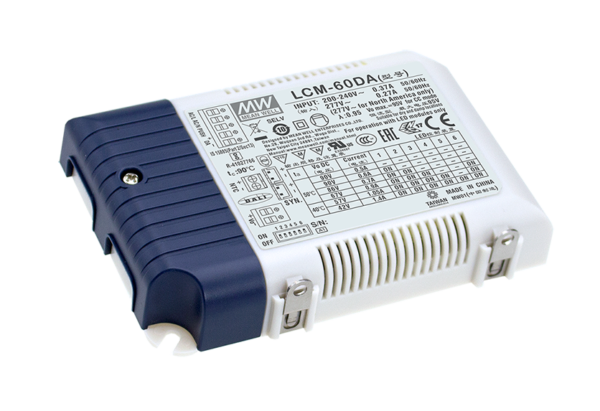

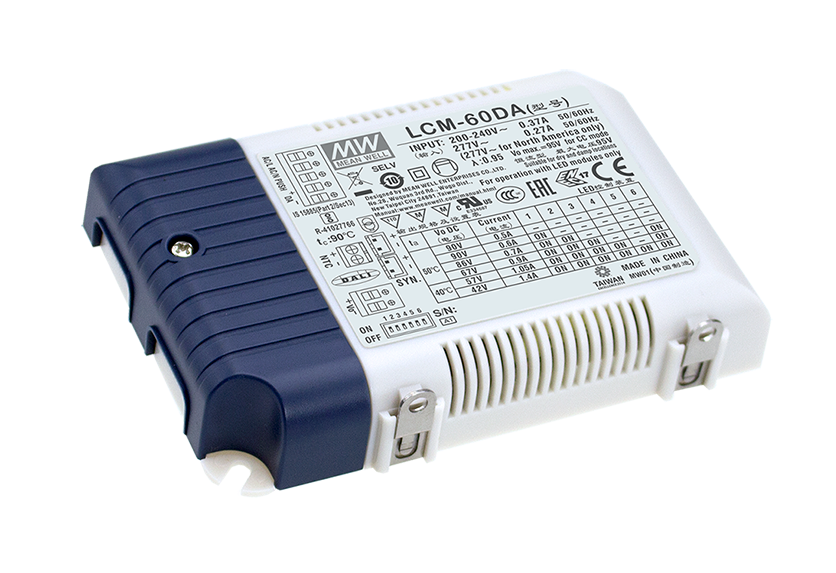

LCM-60DA - 60.3W DALI interface Selectable Constant Current LED Power Supply

LCM-60DA is a 60W multiple-stage output current LED power supply with built-in DALi interface and push dimming function. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.

Email

Description

LCM-60DA is a 60W multiple-stage output current LED power supply with built-in DALi interface and push dimming function. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.

Additional information

Weight 0.30 kg
Function

Dimmable

Inputs

180 ~ 295VAC

Power (watts)

60.3W

Standards

Double Insulation

Technology

DALI Control Technology,Push-Dim

Type

AC/DC,Constant Current,LED Driver

Range Power

Outputs

Single

  • Output current selectable by DIP switch
  • 180~295VAC input
  • Built-in active PFC function
  • Protections: Short circuit/Over voltage/Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case with strain relief design
  • Class II Power unit
  • Built-in DALI interface or push dimming function
  • Built-in 12V/50mA auxiliary output
  • IP20 design
  • Temperature compensation function by external NTC
  • No load power consumption <1.2W
  • Power supplies synchronization function up to 10 units
  • LED lighting applications
  • Double Insulation
