HomeMeanwell Products90.24W 48V 1.88A Desktop Switching Power Supply

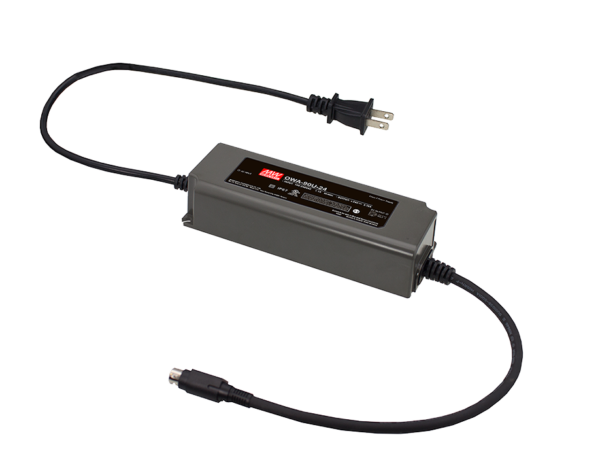

OWA-90U-48 - 90.24W 48V 1.88A Desktop Switching Power Supply

Email

Additional information

Weight 0.83 kg
Voltage (max/rated)

48

Current (amps)

2

Power (watts)

90

R&N (mV)

250

Efficiency (%)

90%

  • AC input range 90 ~132VAC, with NEMA 1-15P plug (Optional : 90 ~264VAC, with NEMA 2-20P plug)
  • Built-in active PFC function
  • High efficiency up to 91%‧
  • Short circuit, Over current, Over voltage, Over temperature protections
  • Class Ⅱ power unit, no FG
  • Fanless design, cooling by free air convection
  • No load power consumption <0.15W
  • NRCan compliant
  • Meets EISA 2007 (Energy Independence and Security Act)
  • Class 2 power (except 12V, 15V)
  • UL LISTED, suitable for dry, damp locations
  • 5 years warranty
  • LED lighting fixture
  • General electronic products in dry or damp environment
