Description

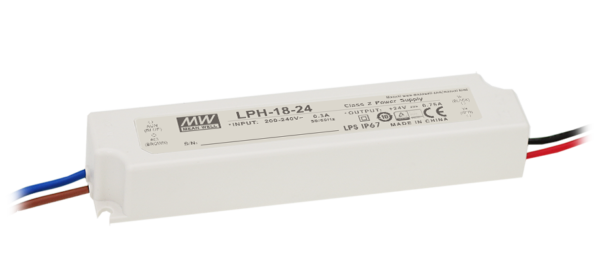

LPH-18 Series are 18W AC/DC enclosed, non PFC design, switching power supplies. LPH-18 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPH-18 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPH-18 can withstand 300VAC input surge for 5 seconds.
Additional information
Standards | CE, TUV, Double Insulation, IP67 Rated, LPS – Limited Power Source |
---|---|
Outputs | |
IP rating | IP67 |
- 180 ~ 264VAC input
- Fully isolated plastic case with IP67 level
- Short circuit, over load, over voltage, over temperature protections
- IP67 design
- Passes LPS
- Cooling by free air convection
- 100% full load burn-in test
- High reliability
- moving signs
- Backlighting
- LED-based decorative lighting
- LED-based architectural lighting
- LED stage and theatre lighting
- LED electronic displays
- CE
- Double Insulation
- IP67 Rated
- LPS - Limited Power Source
- TUV
Products in this range
Part number | Power (watts) | Voltage (max/rated) | Current (amps) | R&N (mV) | Efficiency (%) | |
---|---|---|---|---|---|---|
LPH-18-12 | 18W | 12V | 2A | 120mV | 78% | Request Quote |
LPH-18-24 | 18W | 24V | 1A | 150mV | 82% | Request Quote |
LPH-18-36 | 18W | 36V | 1A | 200mV | 83% | Request Quote |
