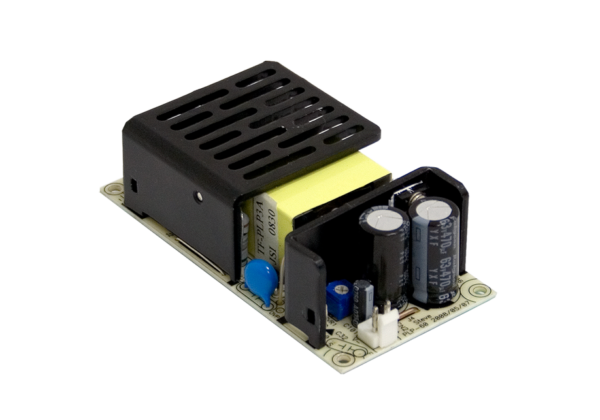

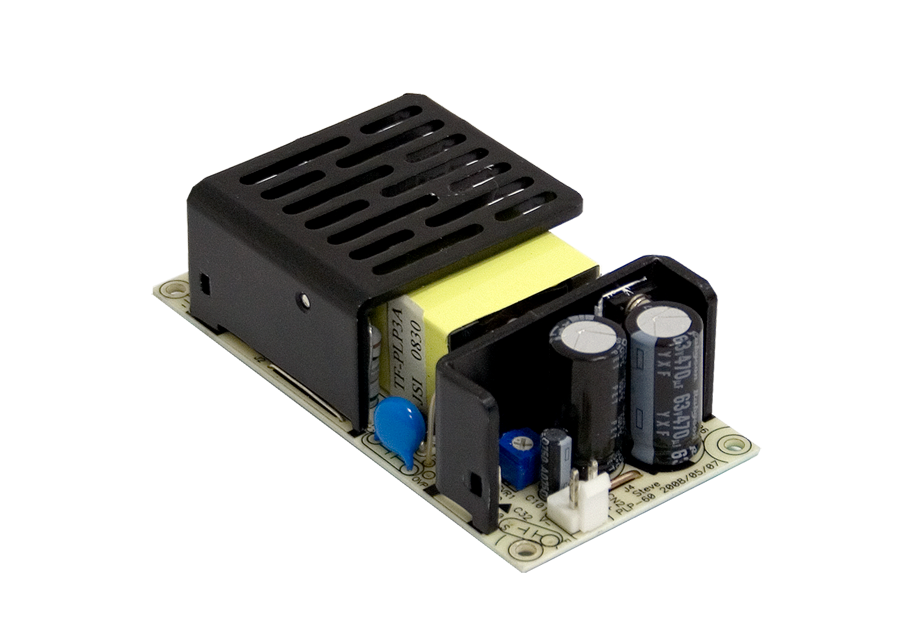

PLP-60 Series - PLP-60 Series 60W Single Output Open Frame Power Supply for LED Lighting
60W Single Output Open Frame Power Supply for LED Lighting
Description
PLP-60 Series are a range of 60W open frame power supplies designed for low cost and built-in installation of LED lighting related applications.
Additional information
| Standards | CE |
|---|---|
| Type | AC/DC,Constant Current,LED Driver,Open Frame |
| Range Power | |
| Outputs | Single |
| Input Voltage | 90 ~ 264VAC |
| Input Frequency | 47 ~ 63Hz |
| Input Current | 0.8A/115VAC 0.4A/230VAC |
| Inrush Current | 42A/230VAC |
| Leakage Current | <0.75mA/ 240VAC |
| Power Factor | PF>0.9 at 75 ~ 100% load, 115VAC / 230VAC |
| Voltage Tolerance | ±10% |
| Line Regulation | ±3.0% |
| Load Regulation | ±5.0% |
| Set Up Time | 1000ms / 230VAC 2000ms / 115VAC at full load |
| Over Current Proection | 105 ~ 115% |
| Constant current limiting, recovers automatically after fault condition is removed | |
| Short Circuit Protection | Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage Protection | Shut down o/p voltage, re-power on to recover |
| Working Temperature | -30°C ~ +70°C (Refer to output load derating curve) |
| Working Humidity | 20 ~ 95% RH non-condensing |
| Storage Temperature, Humidity | -40°C ~ +80°C, 10 ~ 95% RH |
| Temperature Coefficient | ±0.03%/°C (0°C ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes |
| Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG::100M Ohms / 500VDC / 25/°C 70% RH |
| Safety Standards | Design refers to TUV EN61347-1, EN61347-2-13 approved, UL60950-1 |
| EMC | Compliance to EN55015 Class B, EN61000-3-2 Class C (>25W); EN61000-3-3 |
| EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024,EN61547, light industry level, criteria A | |
| MTBF | 583.3Khrs min. MIL-HDBK-217F (25°C) |
| Dimensions | 101.6 x 50.8 x 28mm |
