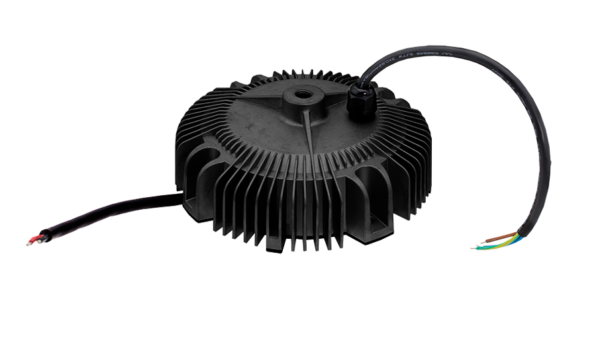

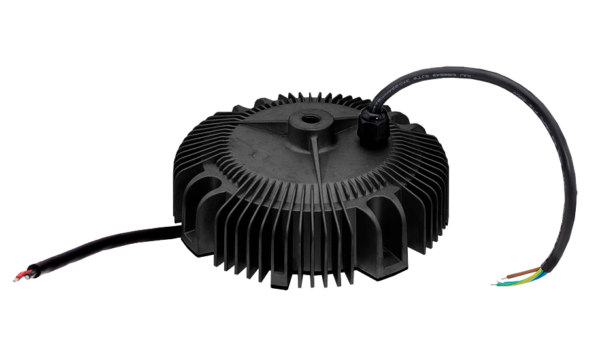

HBG-240-DA Series - HBG-240-DA Series 240W AC/DC Constant Voltage + Constant Current LED Driver
HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design.
Description
HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with a different rated voltage between 24Vand 60V. Thanks to the high efficiency up to 93.5% and fanless design, the entire series is able to operate at -40 ~ +75°C under free air convection. The metal housing design and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for a LED lighting system.
Additional information
| Weight | 2.10 kg |
|---|---|
| Function | Dali Dimming |
| Type | AC/DC,Constant Current,Constant Voltage,LED Driver |
| Range Power | |
| Outputs | Single |
