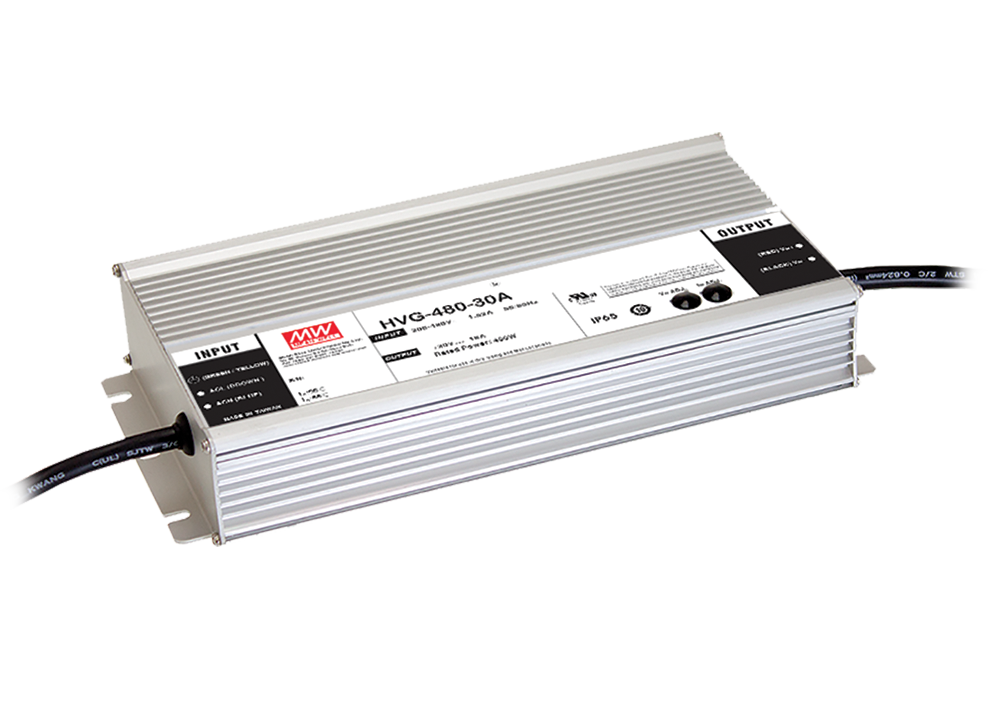

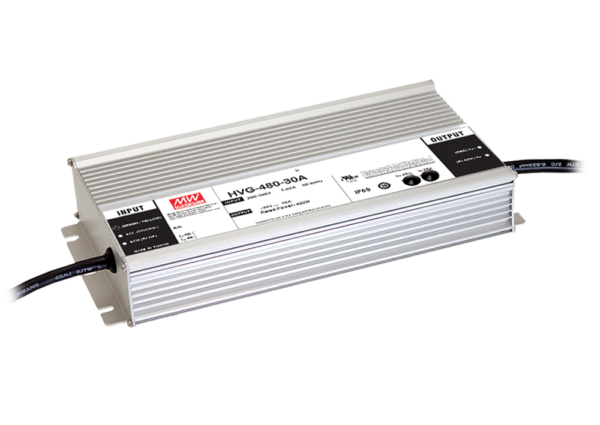

HVG-480-36 - HVG-480-36 478.8W 36V 13.3A Constant Voltage and Constant Current LED Driver
HVG-480-36 is a 478.8W 36V 13.3A Constant Voltage and Constant Current LED Driver. HVG-480-36 operates from 180~528VAC and offers a current of 36V.
Description
HVG-480-36 is a 478.8W 36V 13.3A Constant Voltage and Constant Current LED Driver. HVG-480-36 operates from 180~528VAC and offers a current of 36V. Thanks to the high efficiency up to 94.5% and a fan less design, HVG-480-36 is able to operate from -40~+85°C case temperature under free air convection. The metal housing design is potted with thermal conductive glue, providing IP67/IP65 ingress protection level which allows HVG-480-36 to fit both indoor and outdoor applications. HVG-480-36 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for a LED lighting system. HVG-480-36 suits LED lighting applications, such as high bay lighting, fishing lamp, greenhouse lighting, stadium lighting and has a 5 year warranty.
Additional information
| Weight | 2.80 kg |
|---|---|
| Efficiency (%) | 94.5% |
| Inputs | 180 ~ 528VAC |
| Power (watts) | 480W |
| R&N (mV) | 250mV |
| Type | AC/DC,Constant Current,Constant Voltage,LED Driver |
| Range Power | |
| Outputs | Single |
