IDPC-65 Series - IDPC-65 Series 65W AC/DC Constant Current Mode LED Driver

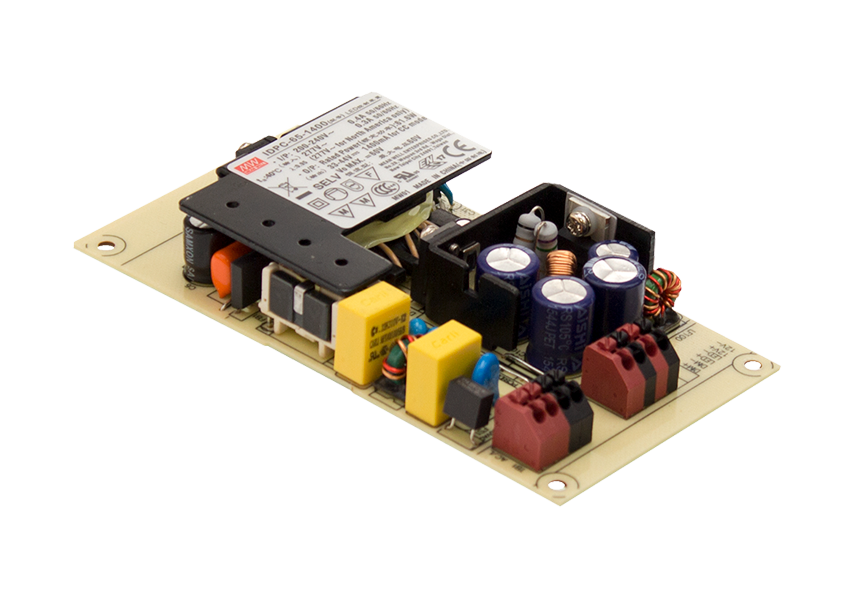

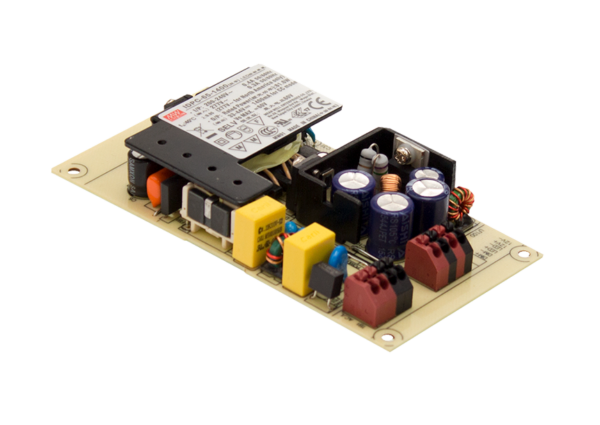

IDPC-65 series is a 65W PCB type LED AC/DC driver featuring a constant current mode output
with flicker free design.
Description
IDPC-65 series is a 65W PCB type LED AC/DC driver featuring a constant current mode output
with flicker free design and built-in active PFC function. IDPC-65 operates from 180~295VAC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to efficiency up to 89% and fan less design, the entire series is able to operate from -20~+40C° ambient temperature under free air convection. IDPC-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for a lighting system. IDPC-65 complies with UL8750, ENEC EN61347-1,-2-13 and GB19510.1, .14 international safety regulations for LED lighting and is suitable to be applied to the indoor LED luminaries requiring flicker free and low power consumption, such as LED panel lighting and LED flood lighting.
Additional information
| Weight | 0.15 kg |
|---|---|
| Inputs | 180 ~ 295VAC |
| Type | AC/DC,Constant Current,LED Driver,Open Frame |
| Range Power | |
| Outputs | Single |
