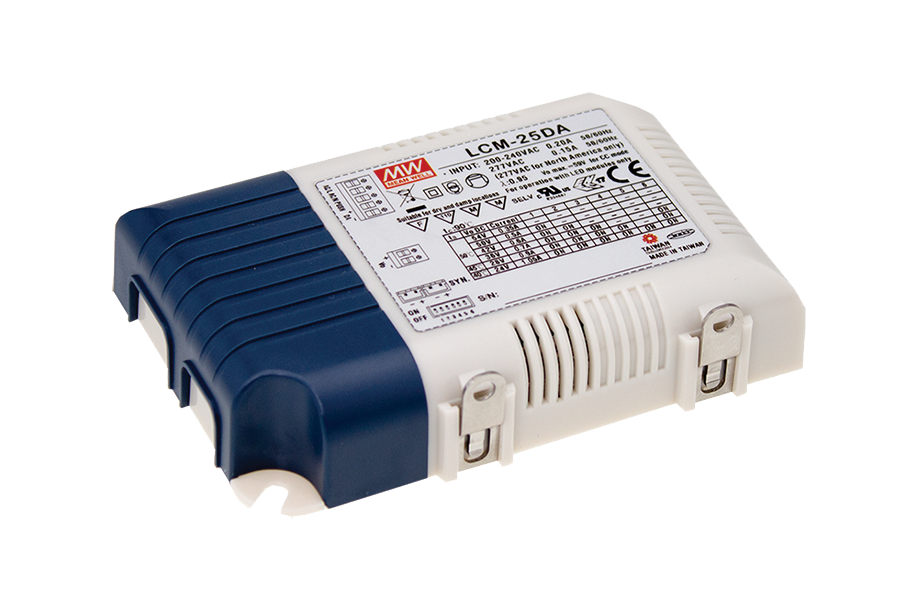

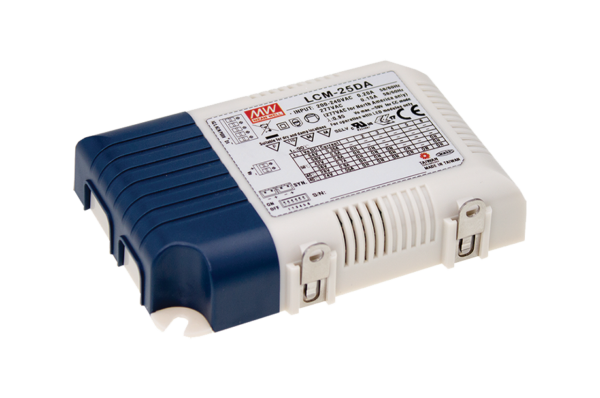

LCM-25DA - LCM-25DA 25.2W Dali Dimming Selectable Constant Current LED Power Supply
25W Constant Current LED Power Supply with Dali Dimming
Description
The DAL125 is part of our comprehensive range of controllers, which are suitable for indoor LED lighting and Class II power units. Incorporating a capability of 180V-227VAC, the 25W LED driver allows you to benefit from the output current level being selectable by the Dip Switch, enabling even more drivers to be connected. Dimming features includes a built in Dali interface and push dimming function as well as being capable of RGB colour adjustment and compatibility to work with all PowerLED CV drivers. The intelligent constant current driver offers 6~54VDC, 350 ~ 1050mA and IP20 rating.
Additional information
| Weight | 0.17 kg |
|---|---|
| Current (amps) | 350 – 1050mA |
| Efficiency (%) | 86% |
| Function | Dimmable,Dali Dimming |
| Inputs | 180 ~ 277VAC |
| IP rating | IP20 |
| Power (watts) | 18.9-25W,18.9W,25.2W |
| Standards | CE |
| Type | AC/DC,Constant Current,LED Driver |
| Voltage (max/rated) | 6 ~ 54VDC |
| Range Power | |
| Outputs | Single |
